V-groove - folding - signmaking CNC router cutter
663.1
TECHNICAL DETAILS:
- Super-strength steel.
- 1 cutting edge (Z1).
- 2 cutting edges (Z2).
790.360.01 - Optional S790.360.03: 36x12x1,5mm HW-SMG replaceable knife (4 cutting edges 35°).
Details

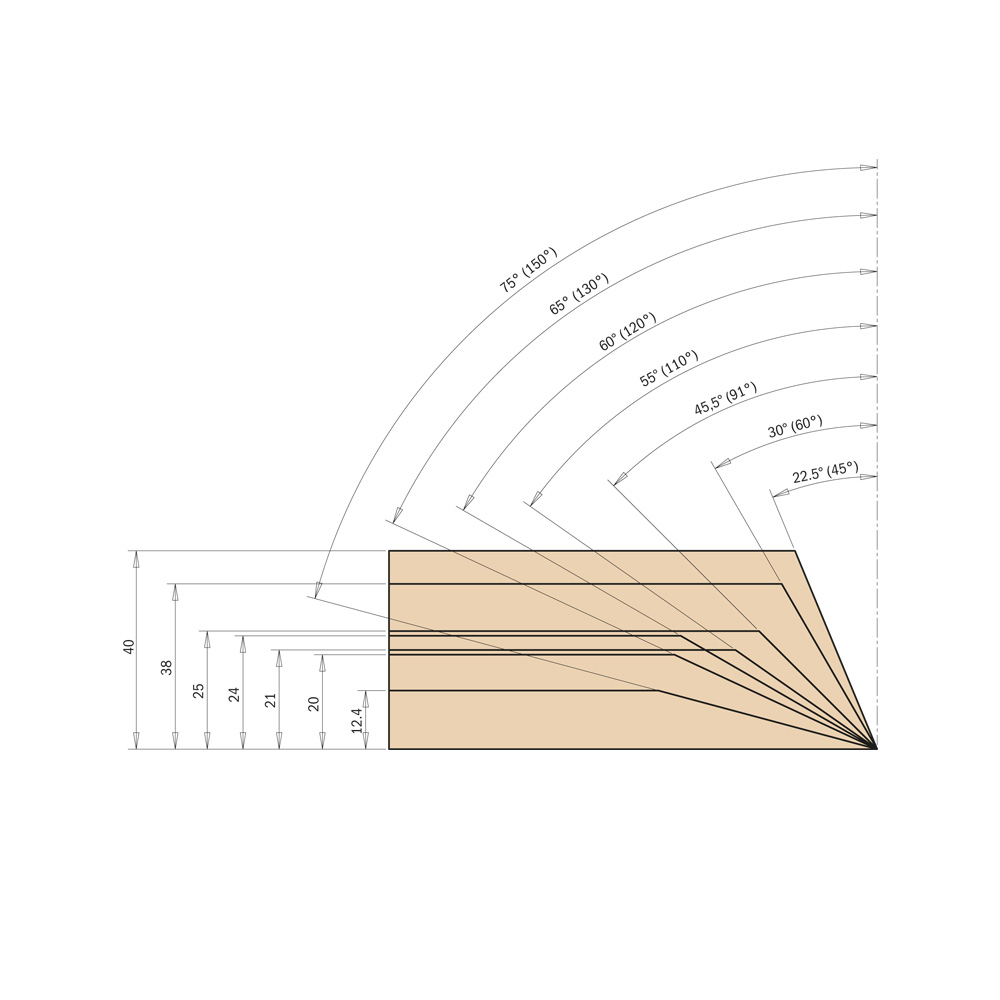

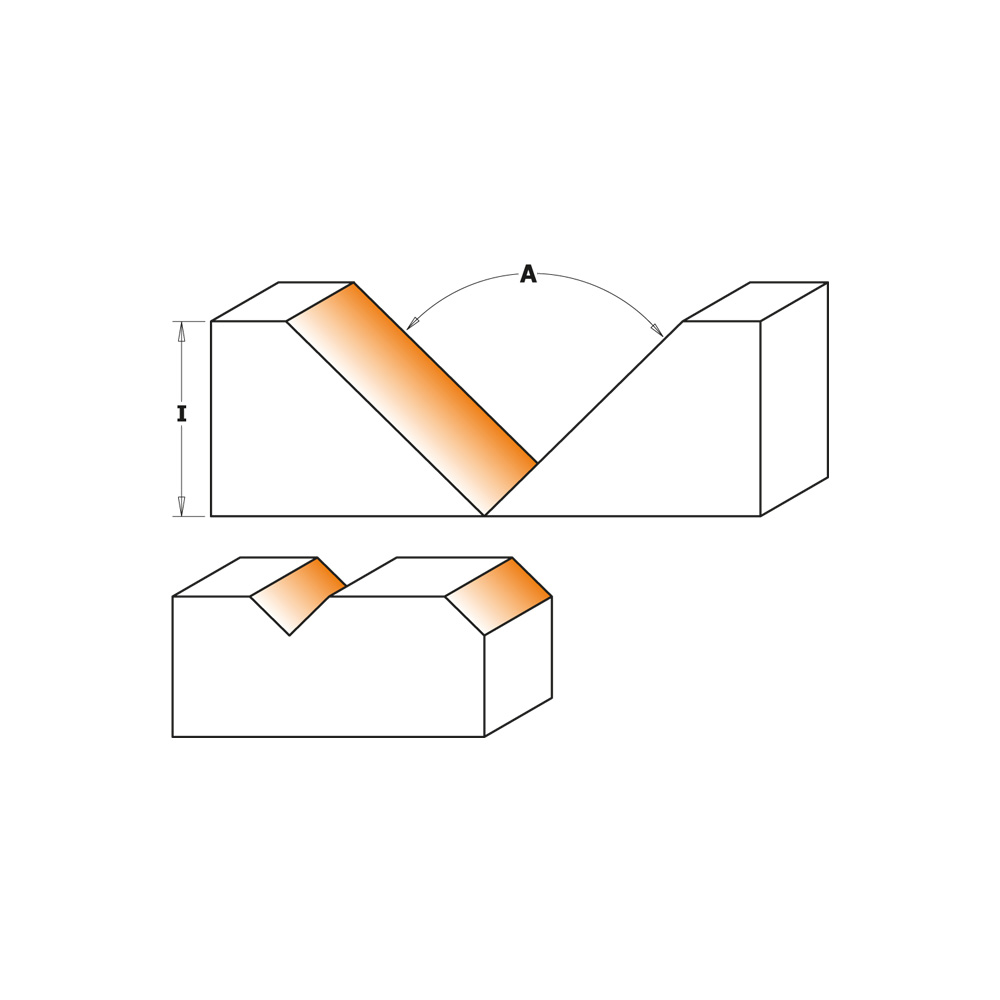

This innovative CNC router bit offers you an endless range of possibilities for V-Groove, miter folds, signmaking, lettering and chamfer edges.
The tool mounts a high grade HWM reversible knife ideal for general purpose, chipboard and plywood, but a higher quality is available for laminated and MDF material.
Variations
Filter
| Item Code | D | I | L | A | S | Z | RH-LH |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

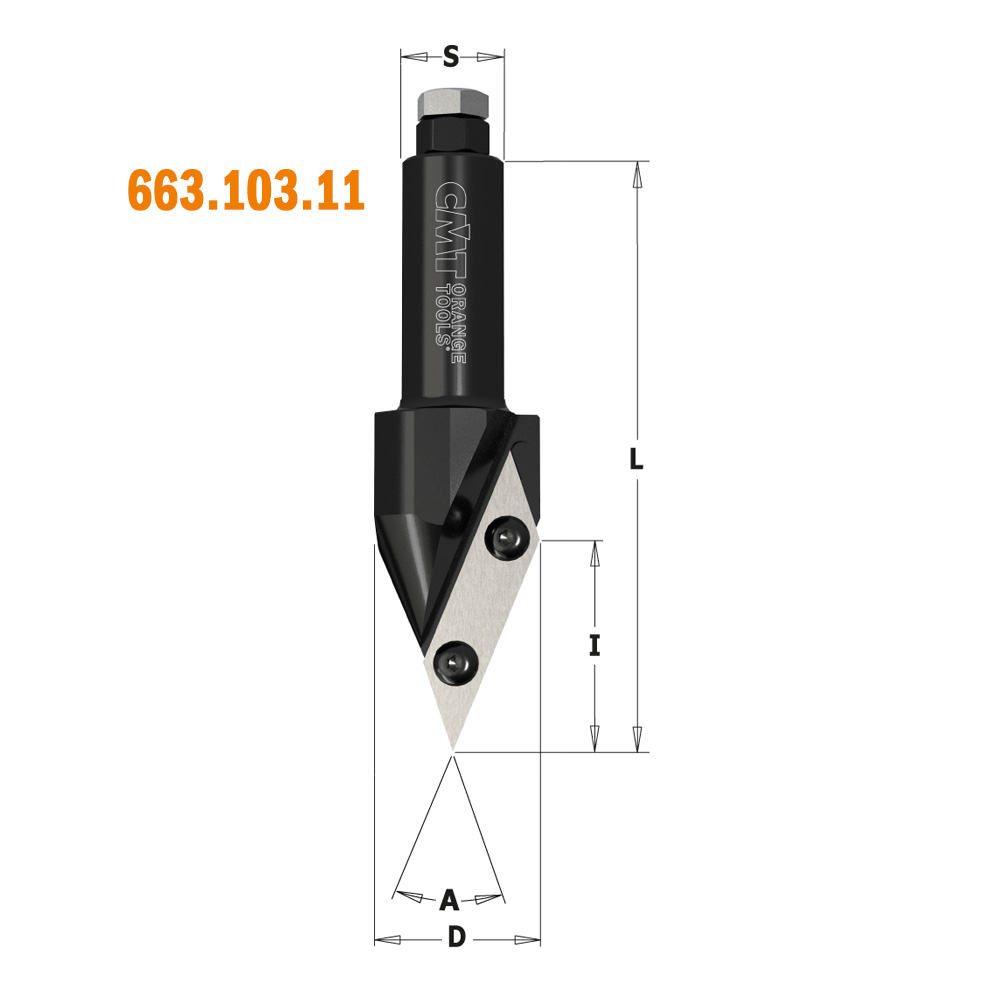

663.103.11
|
1-3/8'' | 40mm | 115mm | 45° | 20mm | 1 | RH | 790.580.01 | 991.061.00 | 990.020.00 | 990.073.00 | 990.036.00 | ||||
|

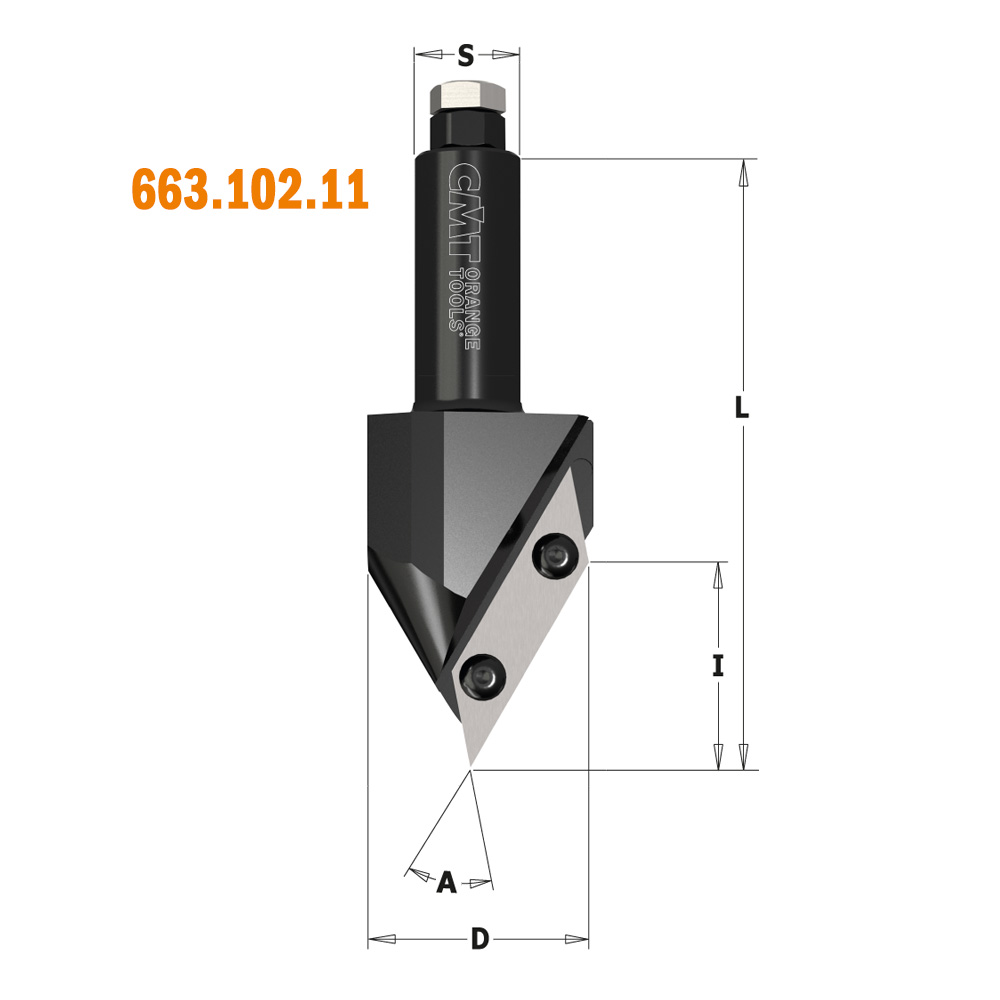

663.102.11
|
1-21/32'' | 1-1/2'' | 115mm | 60° | 20mm | 1 | RH | 790.580.01 | 991.061.00 | 990.020.00 | 990.073.00 | 990.036.00 | ||||
|

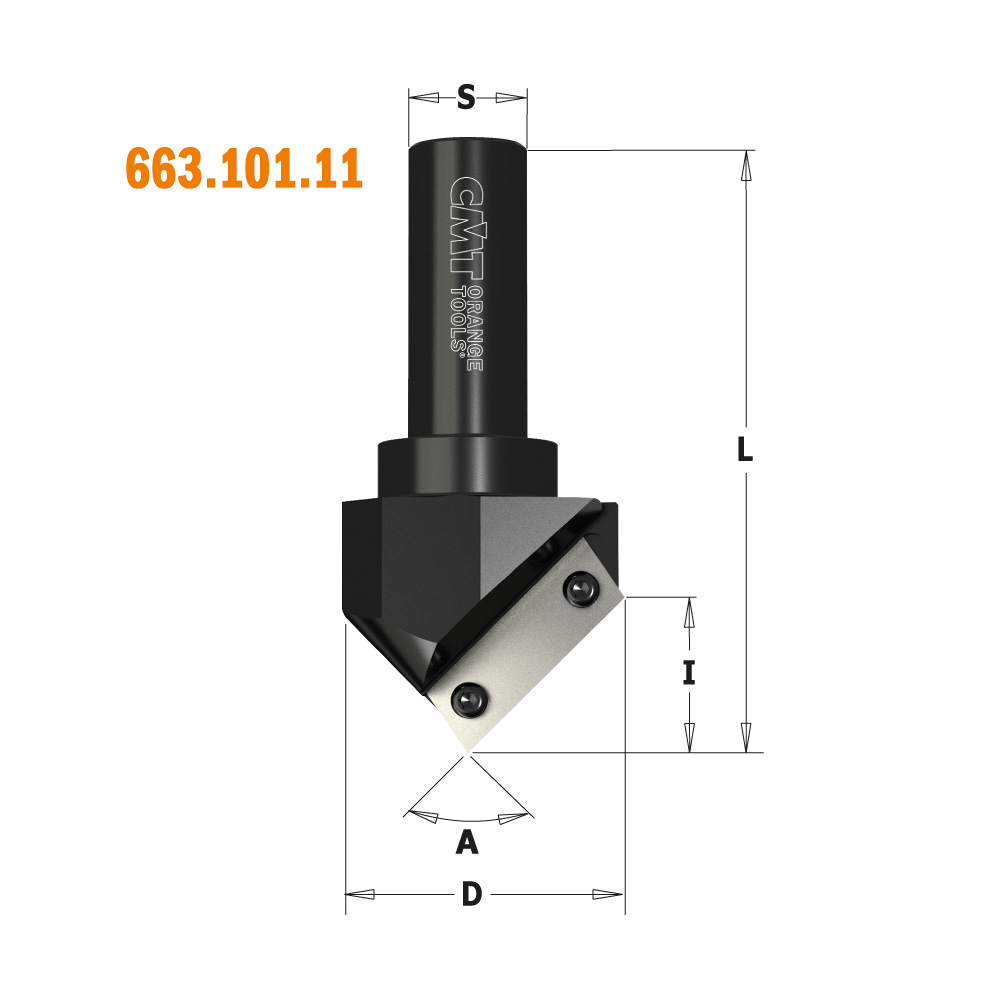

663.101.11
|
2-1/16'' | 25mm | 4'' | 91° | 20mm | 1 | RH | 790.360.01 | 991.061.00 | 990.020.00 | 990.073.00 | 990.036.00 | ||||
|

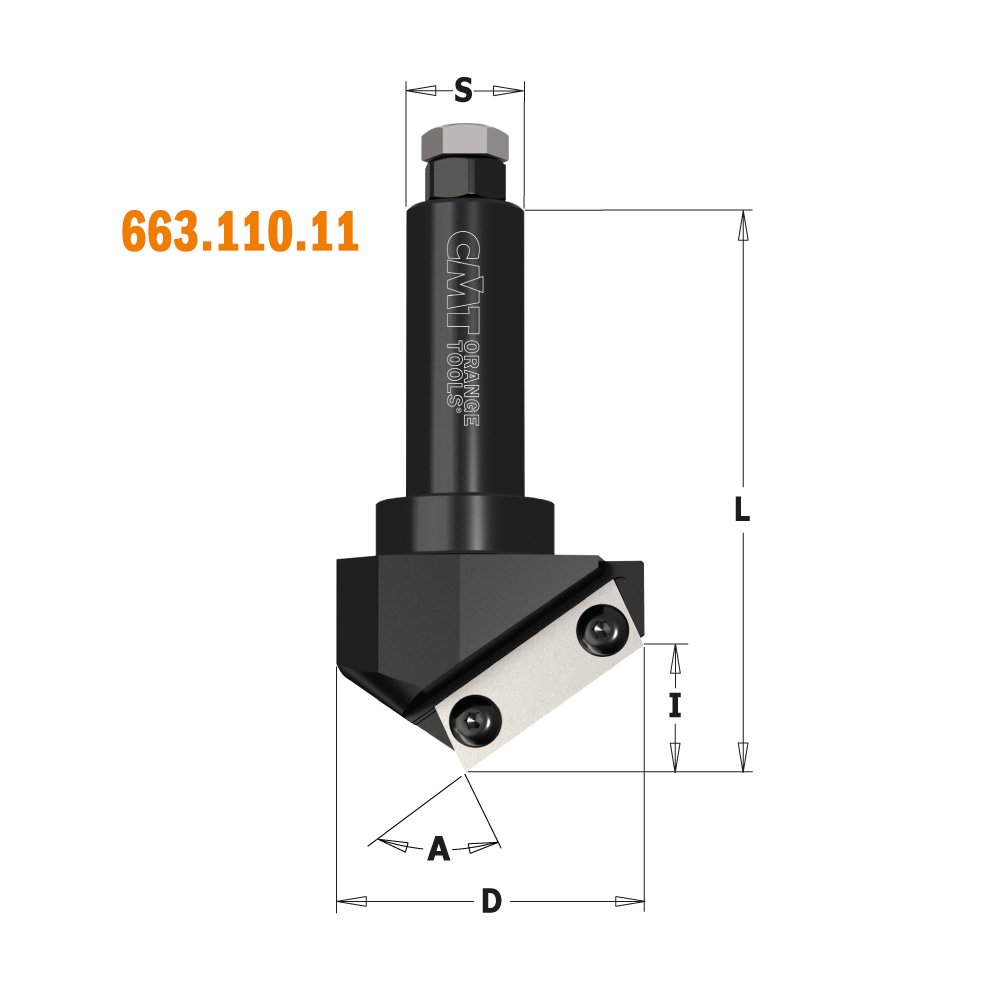

663.110.11
|
2-3/8'' | 21mm | 95mm | 110° | 20mm | 1 | RH | 790.360.01 | 990.075.00 | 991.061.00 | 990.020.00 | 990.036.00 | ||||
|

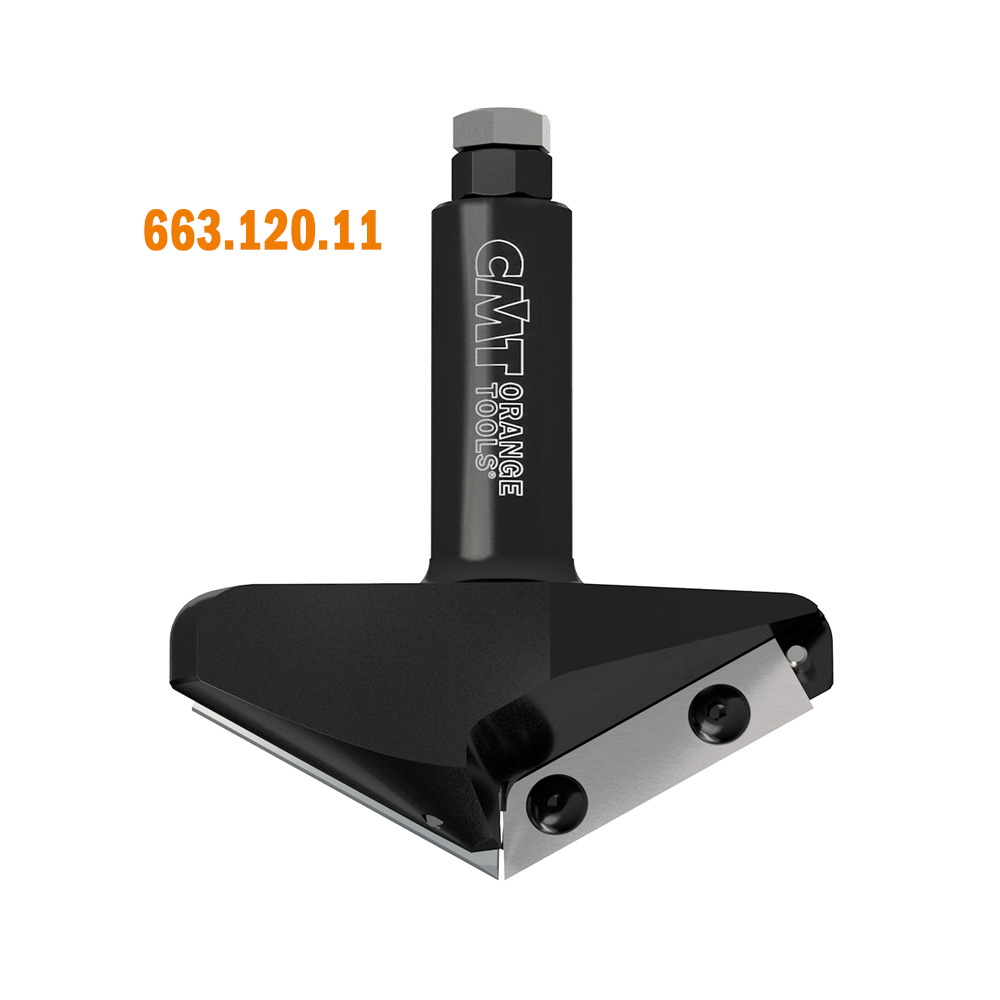

663.120.11
|
3-7/16'' | 24mm | 95mm | 120° | 20mm | 2 | RH | 790.496.01 | 990.075.00 | 991.061.00 | 990.020.00 | 990.036.00 | ||||
|

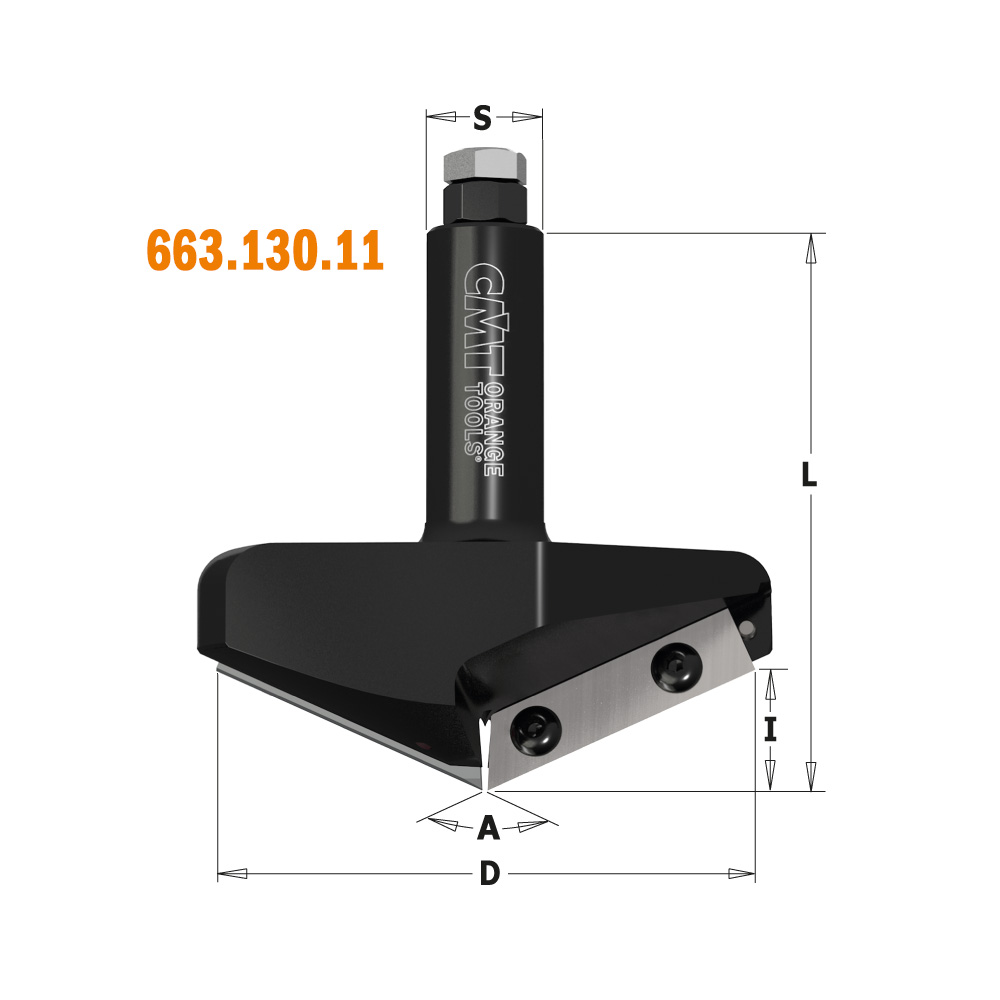

663.130.11
|
3-37/64'' | 20mm | 95mm | 130° | 20mm | 2 | RH | 790.496.01 | 990.075.00 | 991.061.00 | 990.020.00 | 990.036.00 | ||||
|

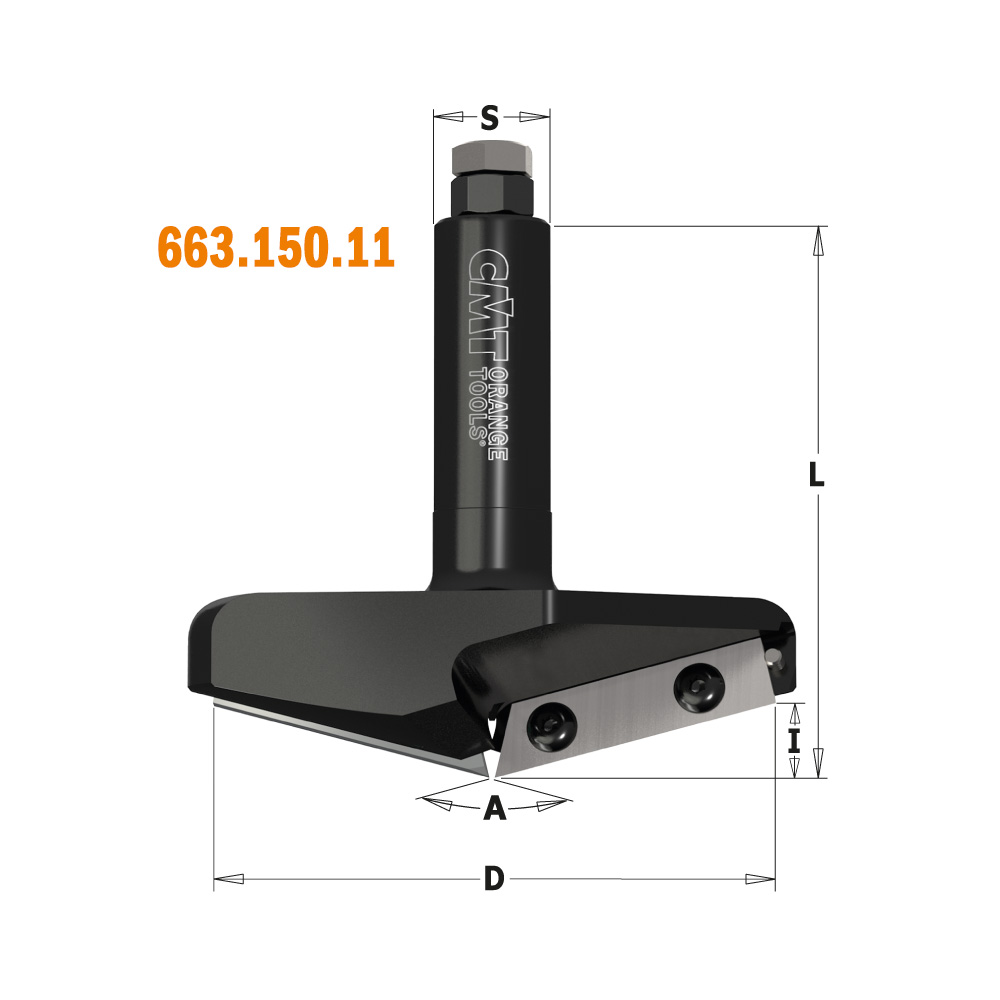

663.150.11
|
3-51/64'' | 1/2'' | 95mm | 150° | 20mm | 2 | RH | 790.496.01 | 990.075.00 | 991.061.00 | 990.020.00 | 990.036.00 |
