Spoilboard surfacing router cutters with insert knives
663
TECHNICAL FEATURES:
- Super strength steel.
- 3 cutting edges (Z3).
- 4 cutting edges (Z4).
Details

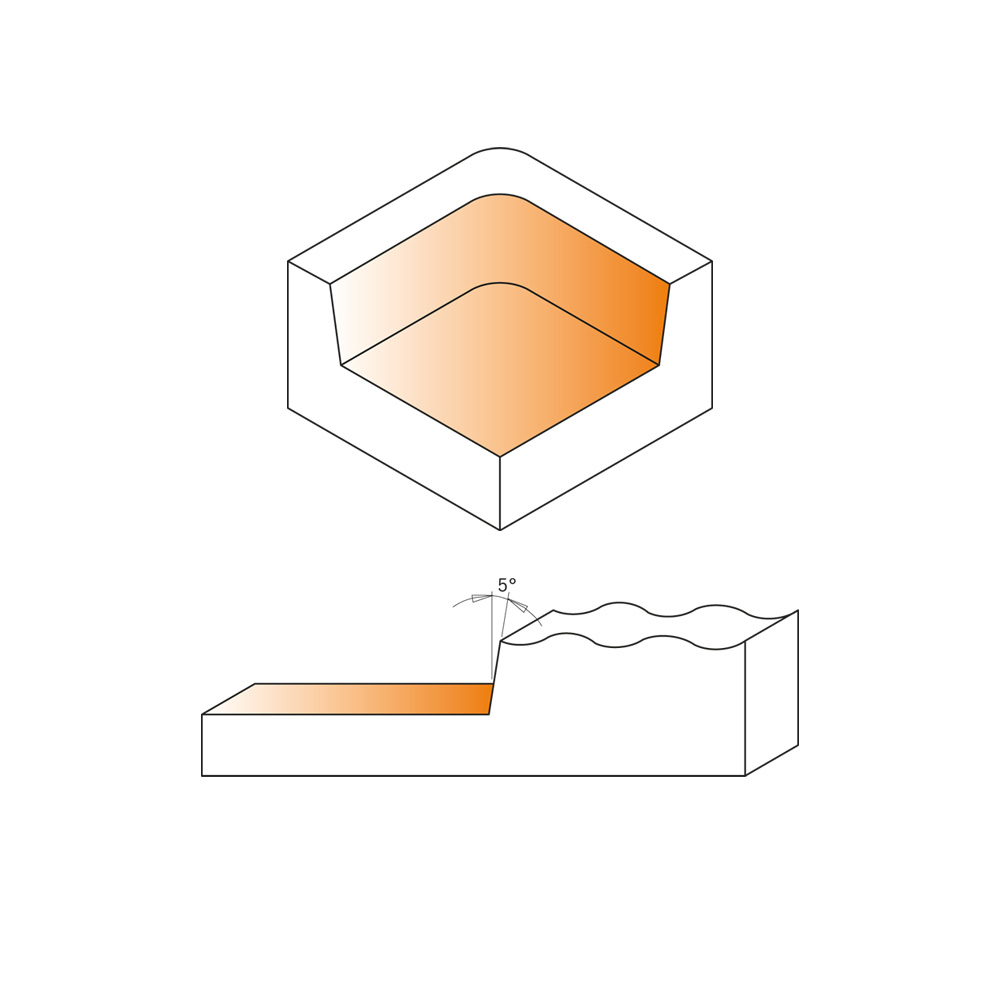

The new router bit for CNC routers is ideal for fast removal of material over a large surface area leaving an improved finish at the bottom of the cut.
Used on soft and hardwood, particle board and MDF.
Used on soft and hardwood, particle board and MDF.

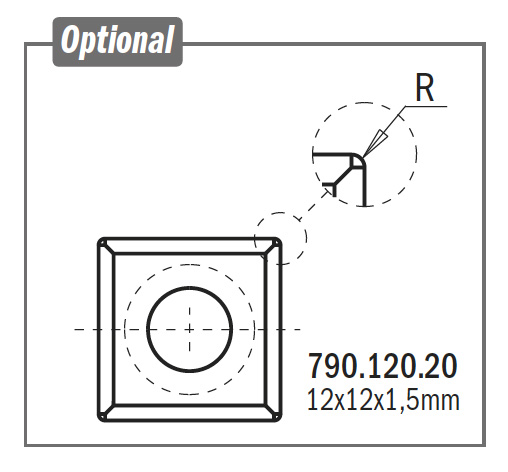

The cutter uses 4-sided inserts in super micrograin carbide.
A cost effective solution compared to brazed router bits and solid carbide spiral bits.
Variations
Filter

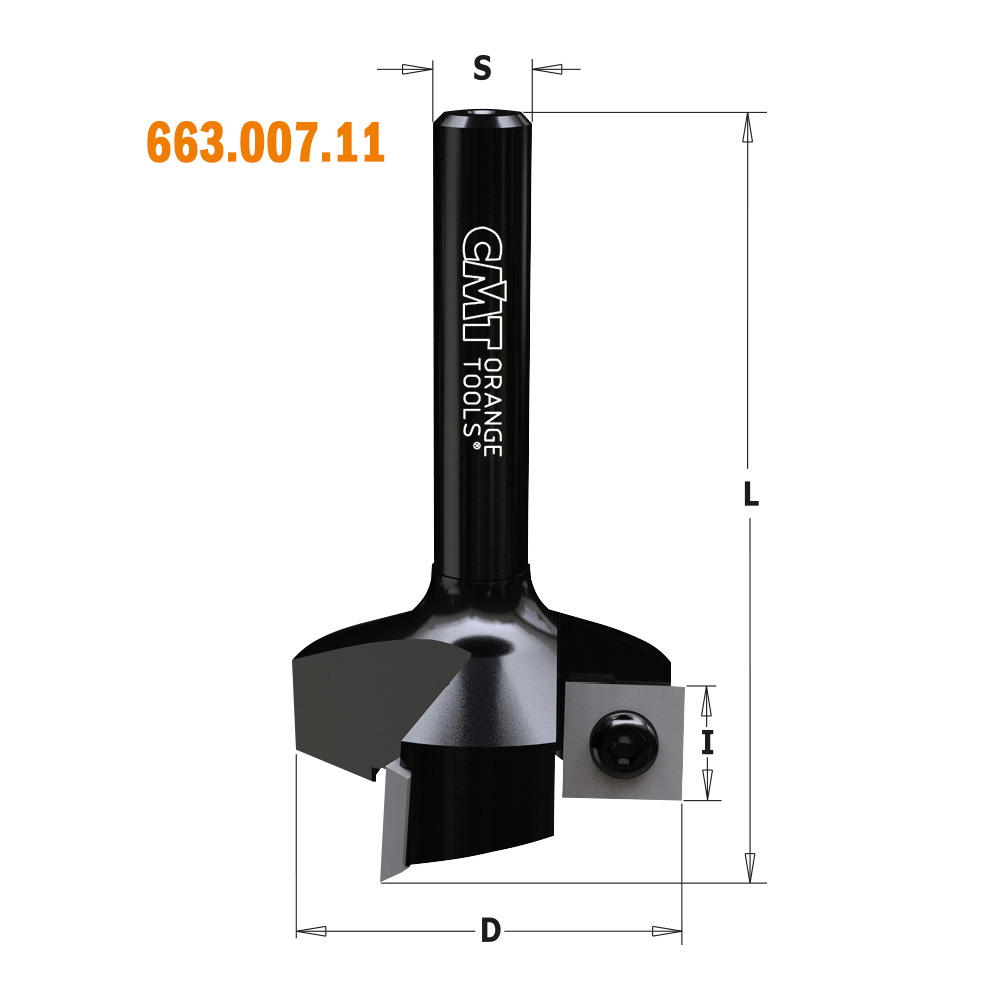

| Item Code | D | I | L | S | RH-LH |
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|

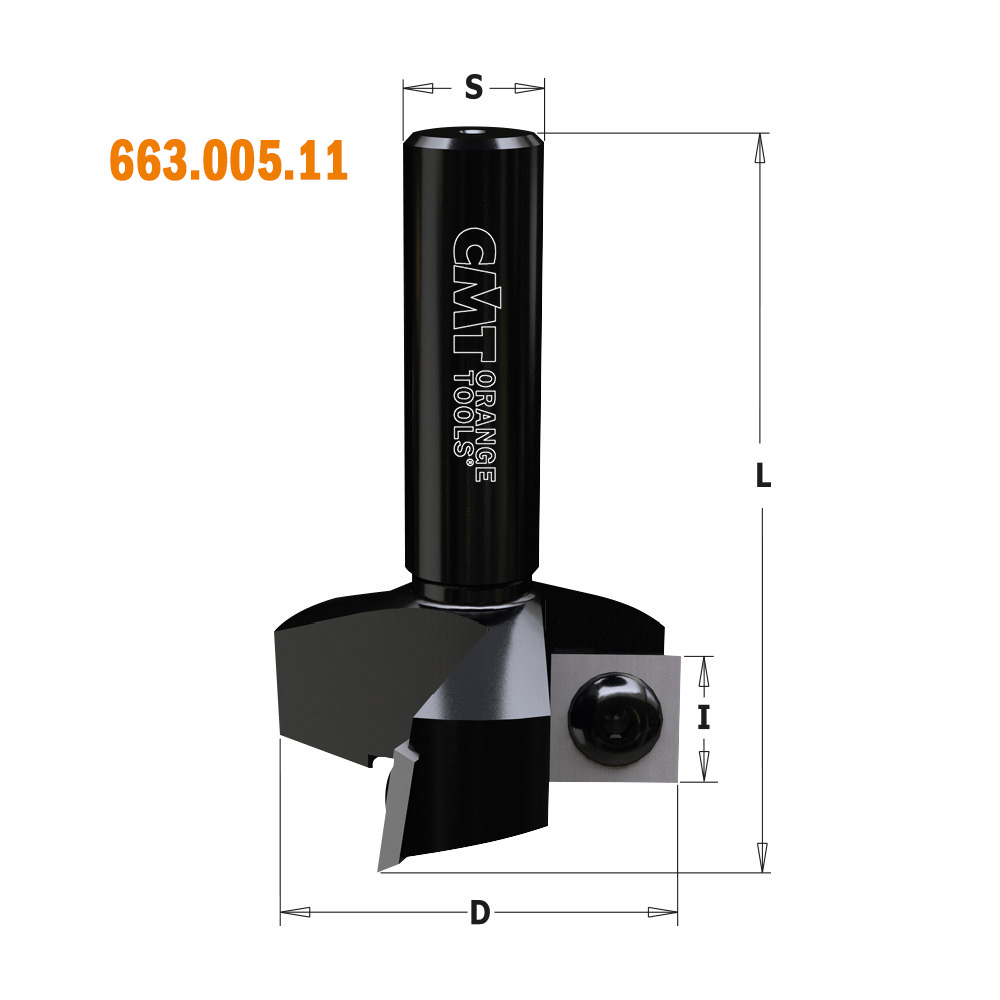

663.005.11
|
1-1/2'' | 12mm | 60mm | 12mm | RH | 790.120.03 | 990.075.00 | 991.061.00 | 990.020.00 | 990.036.00 | |
|

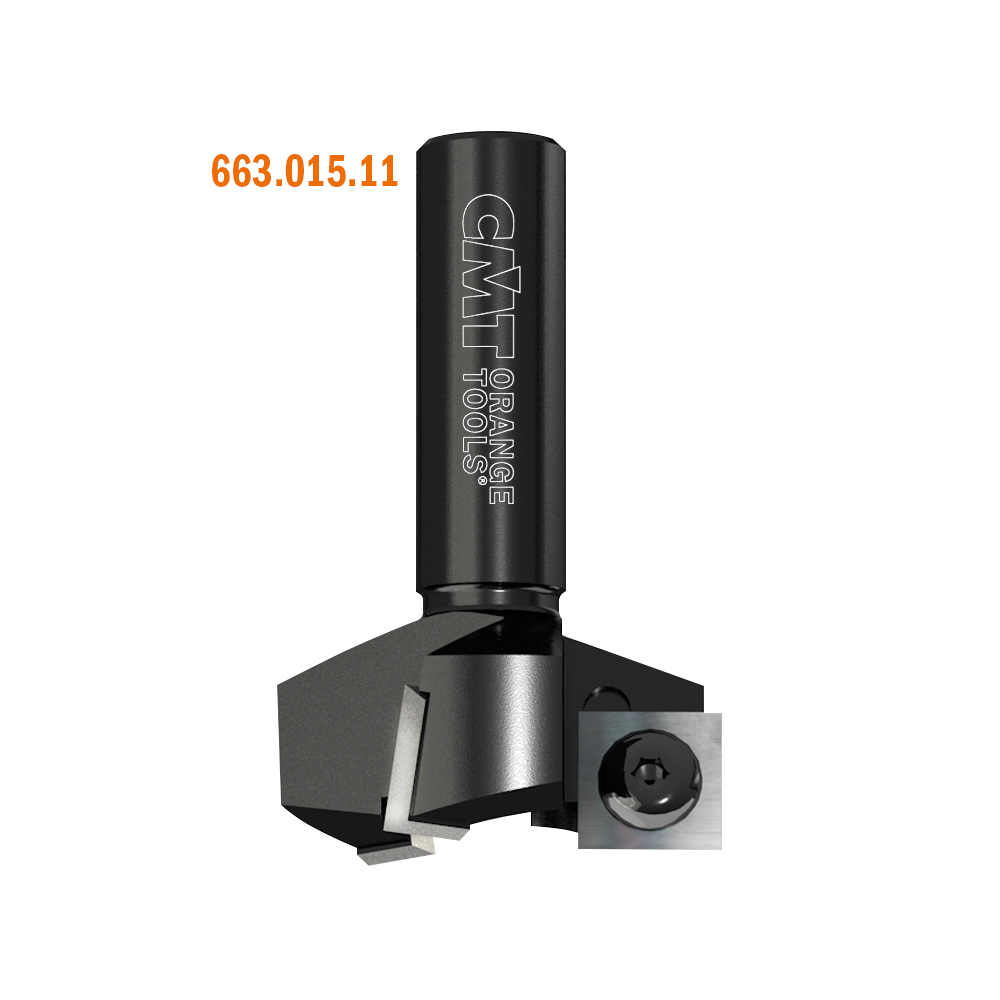

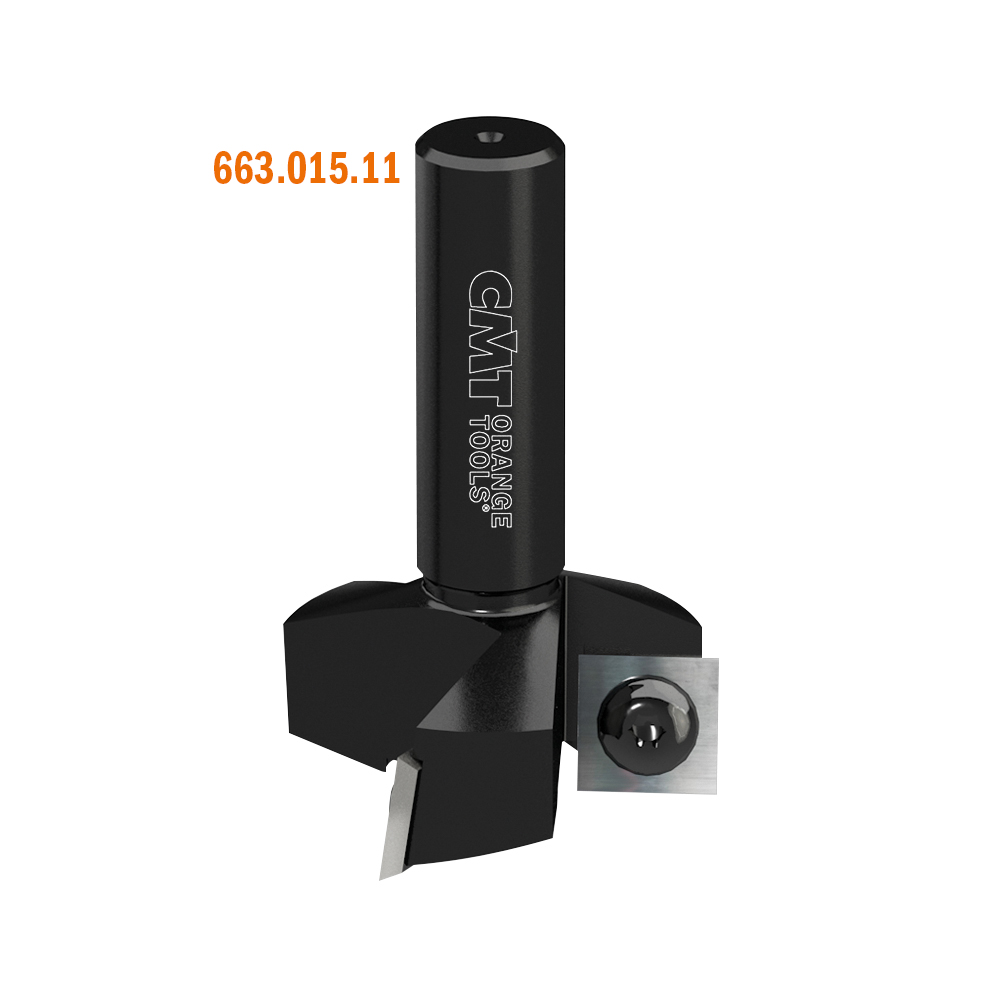

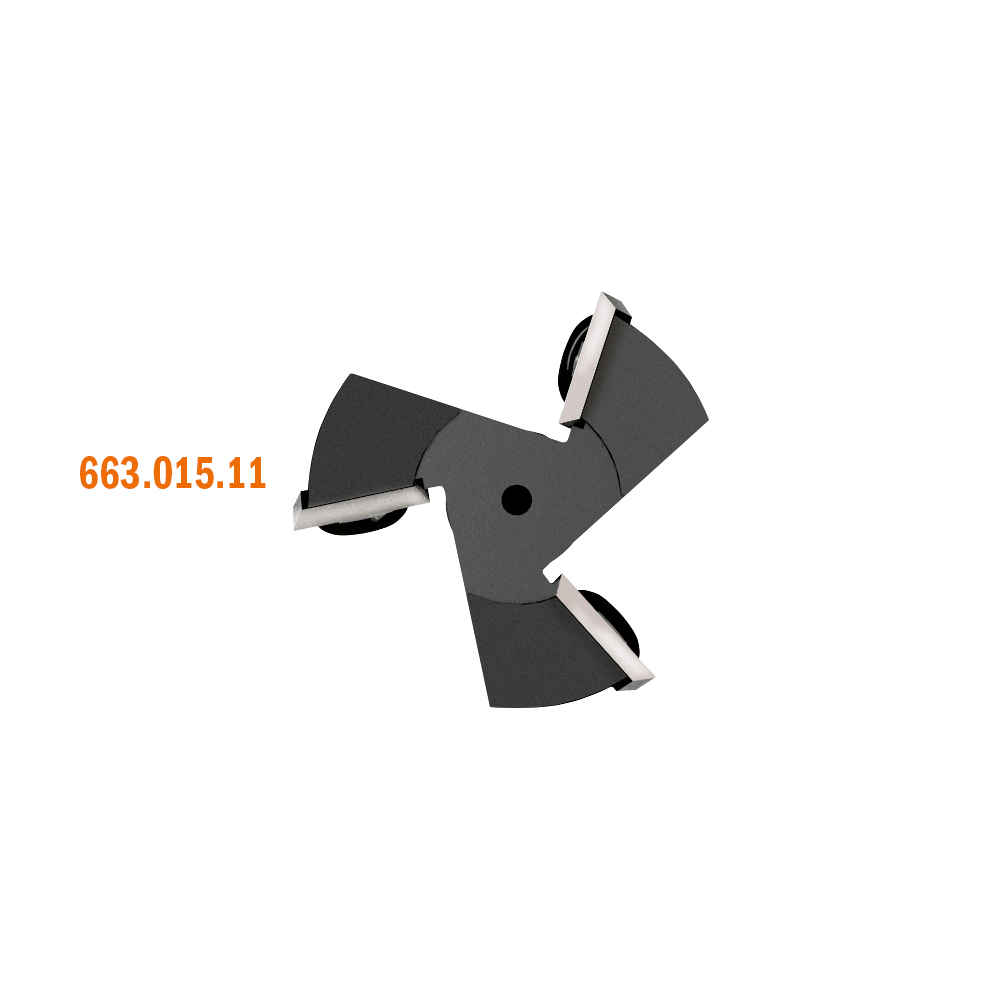

663.015.11
|
1-1/2'' | 15/32'' | 60mm | 1/2'' | RH | 790.120.03 | 990.075.00 | 991.061.00 | |||
|

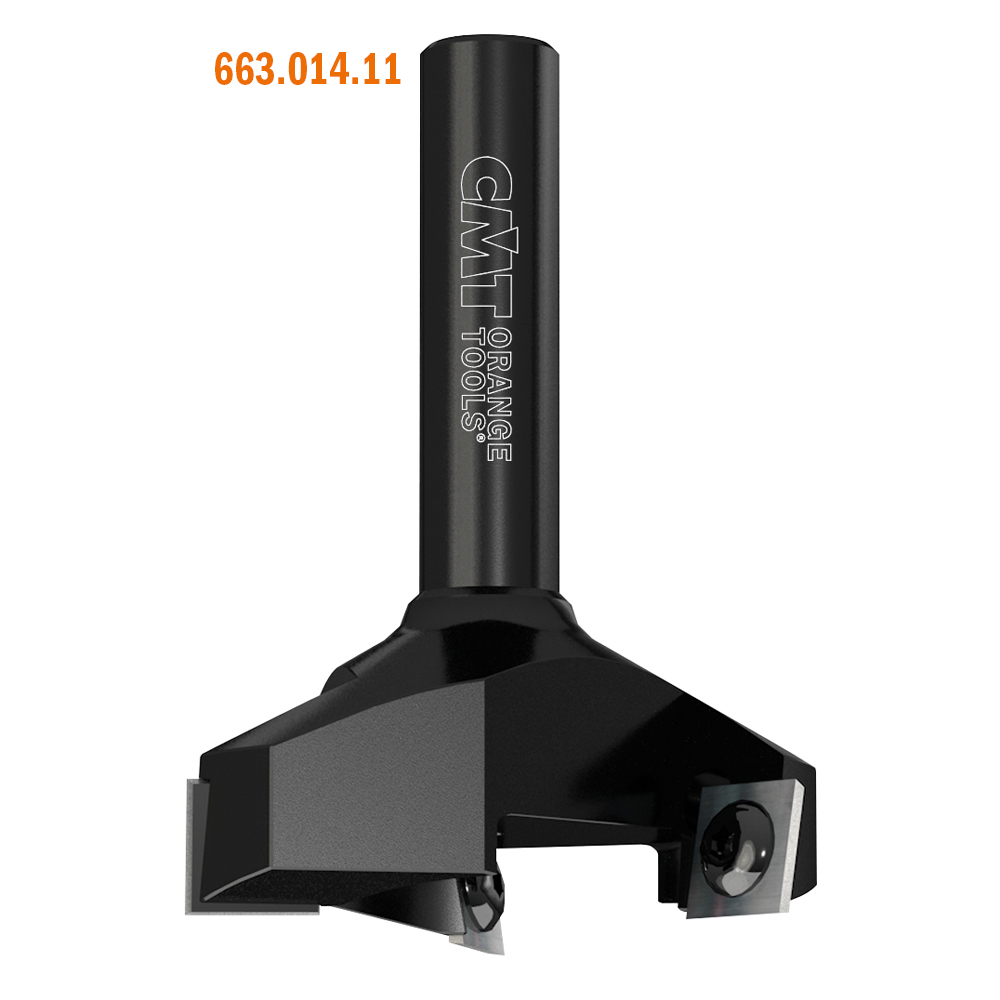

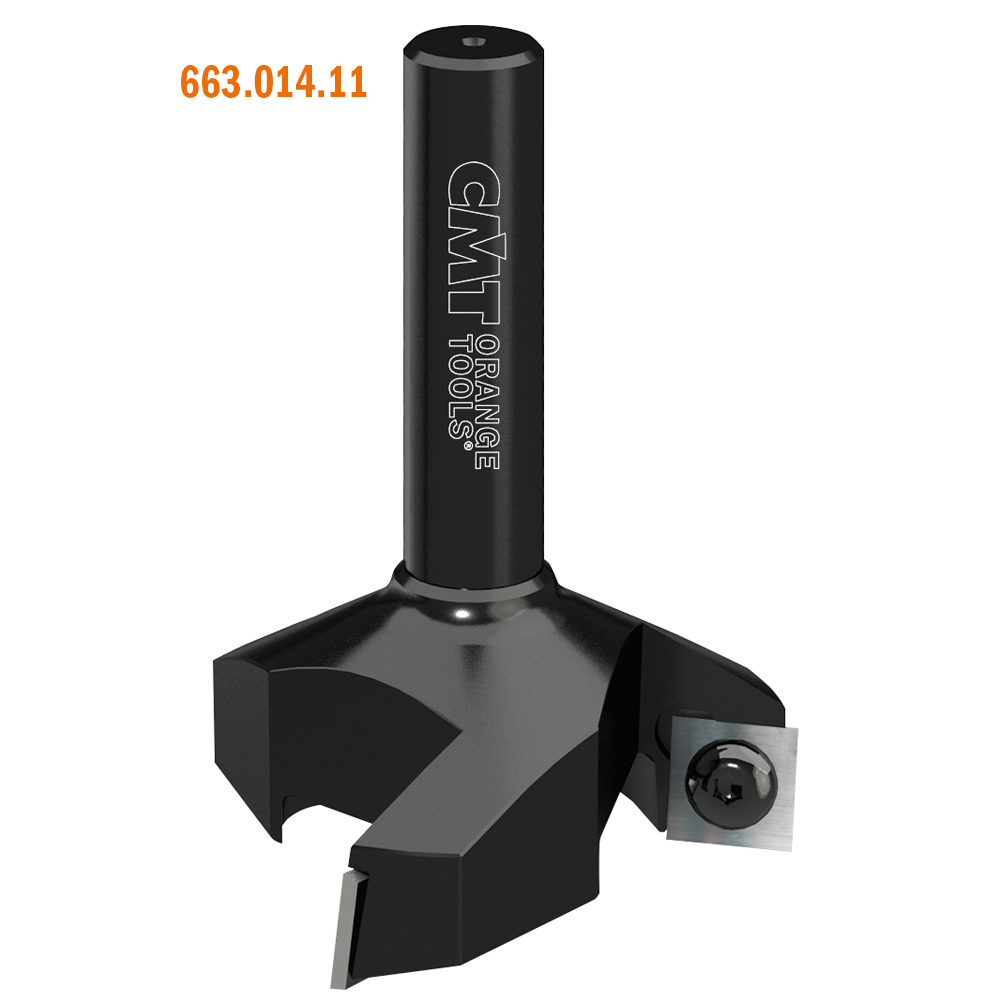

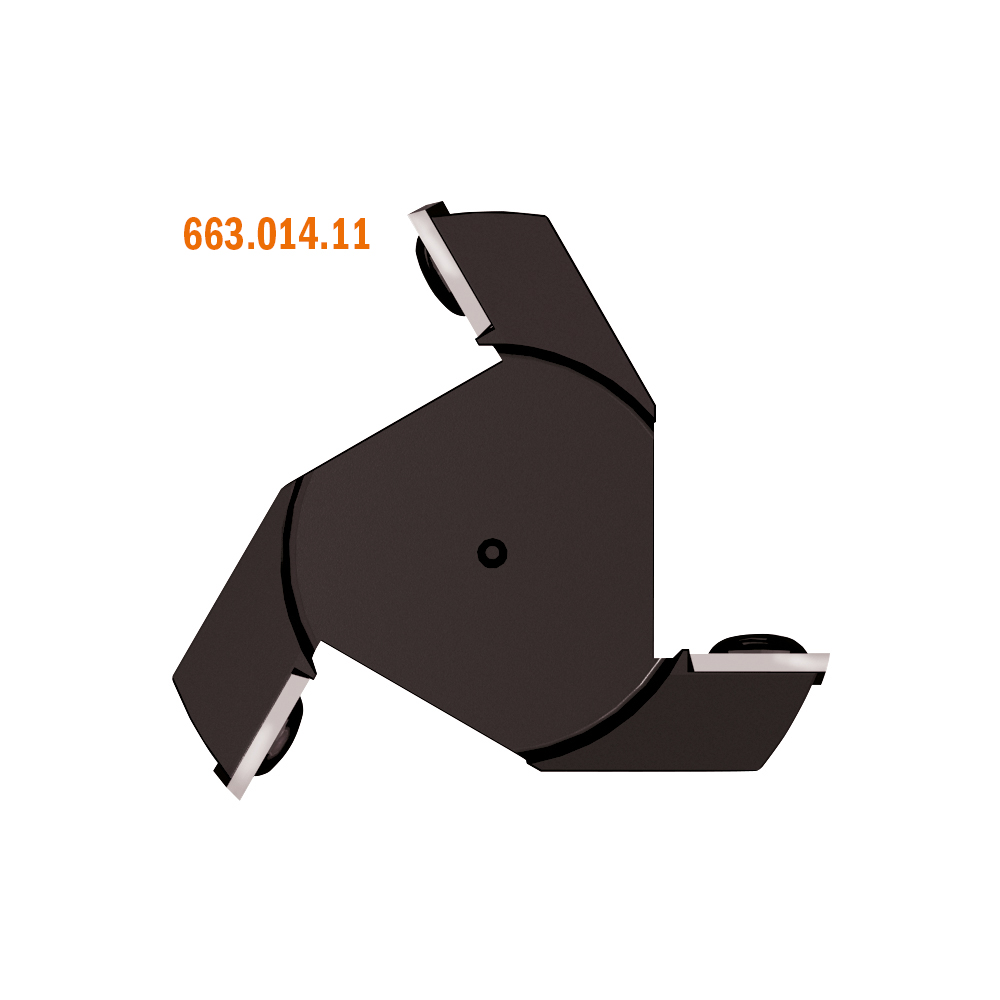

663.014.11
|
2-3/8'' | 15/32'' | 3-5/32'' | 1/2'' | RH | 790.120.03 | 990.075.00 | 991.061.00 | |||
|

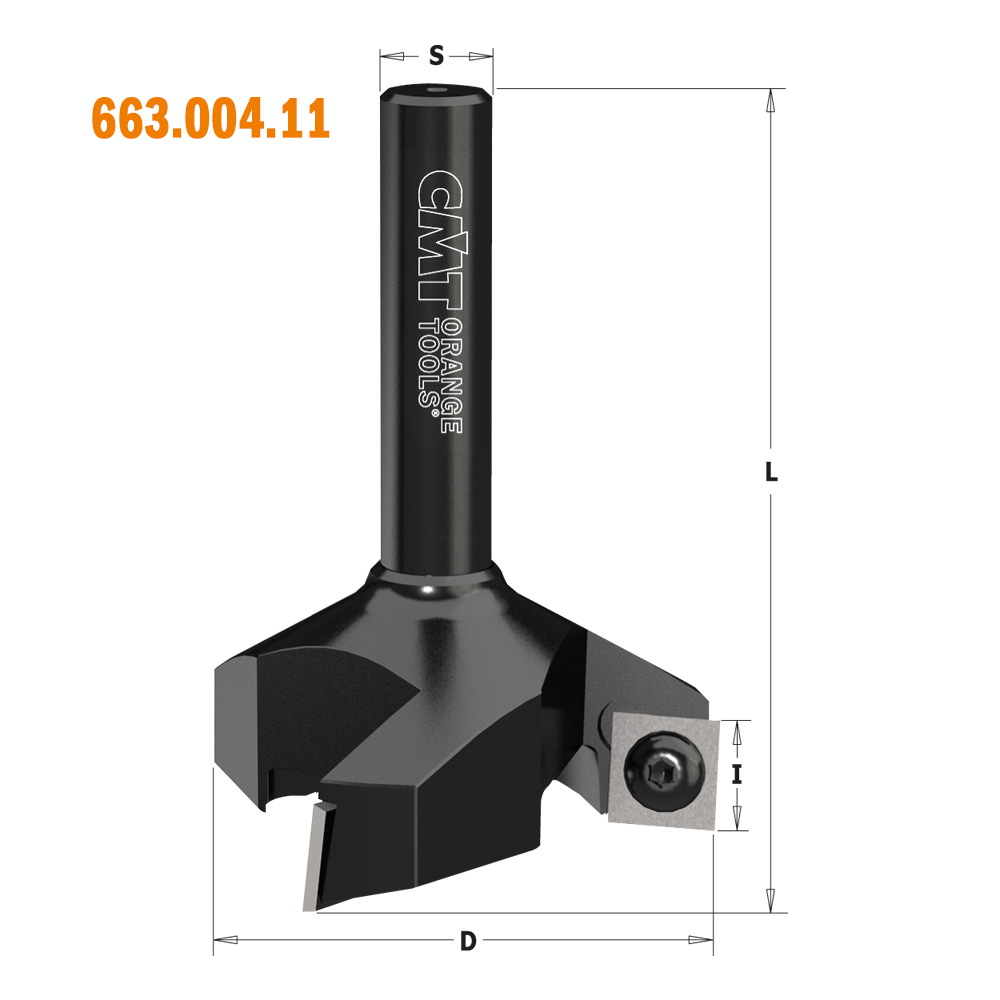

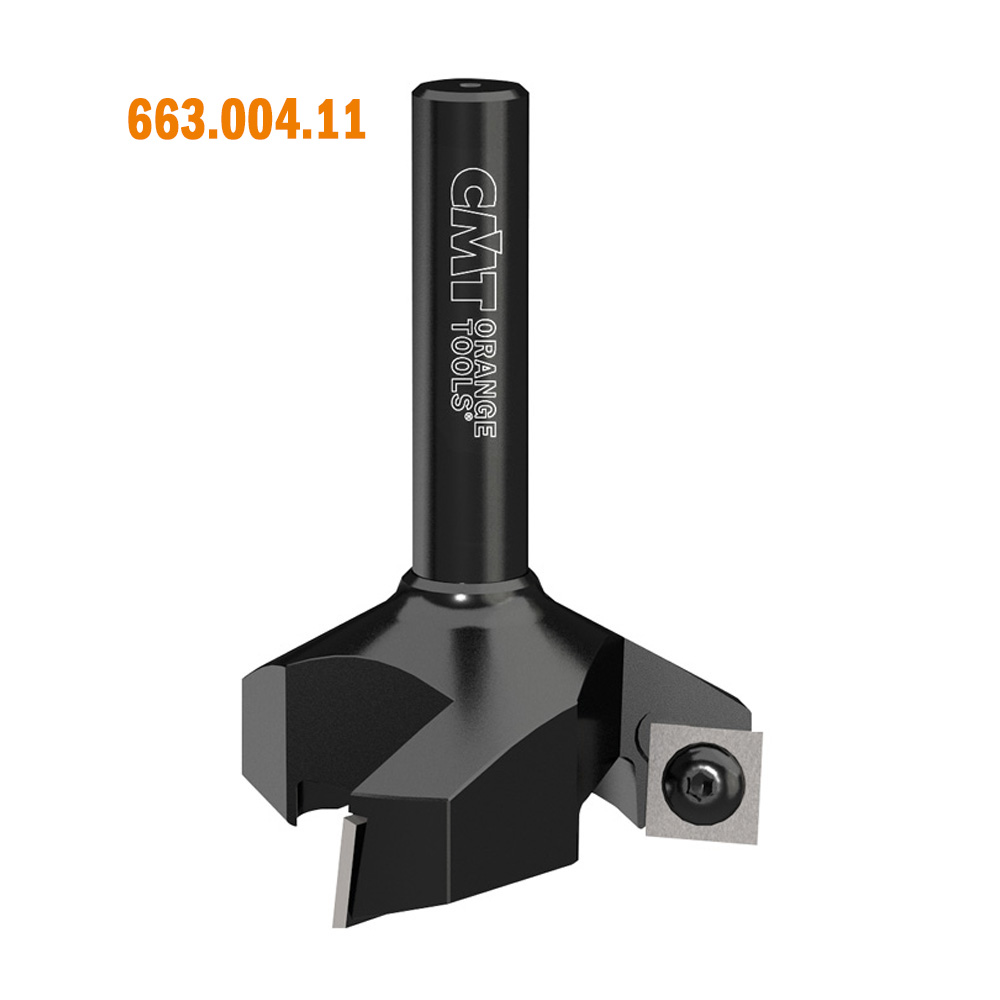

663.004.11
|
2-3/8'' | 12mm | 80mm | 12mm | RH | 790.120.03 | 990.075.00 | 991.061.00 | 990.020.00 | 990.036.00 | |
|

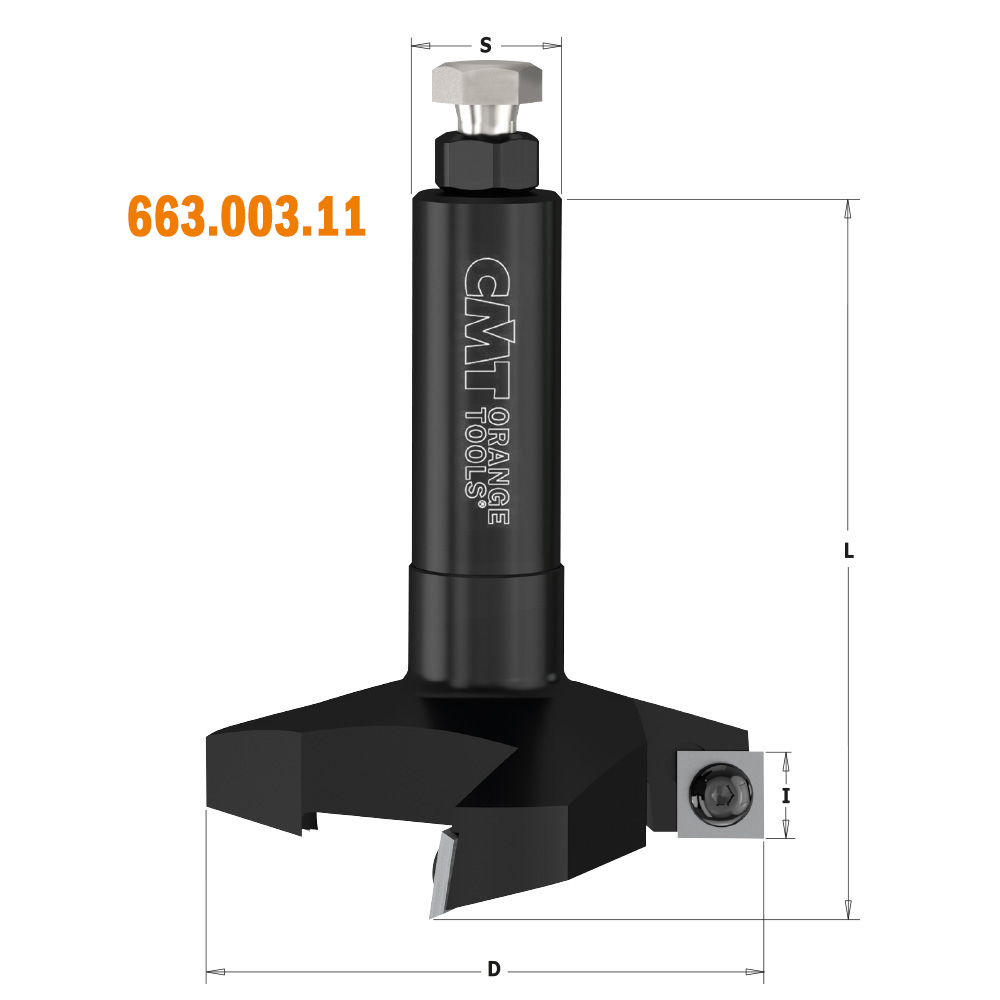

663.003.11
|
3-5/32'' | 12mm | 90mm | 20mm | RH | 790.120.03 | 990.075.00 | 991.061.00 | 990.020.00 | 990.036.00 | |
|

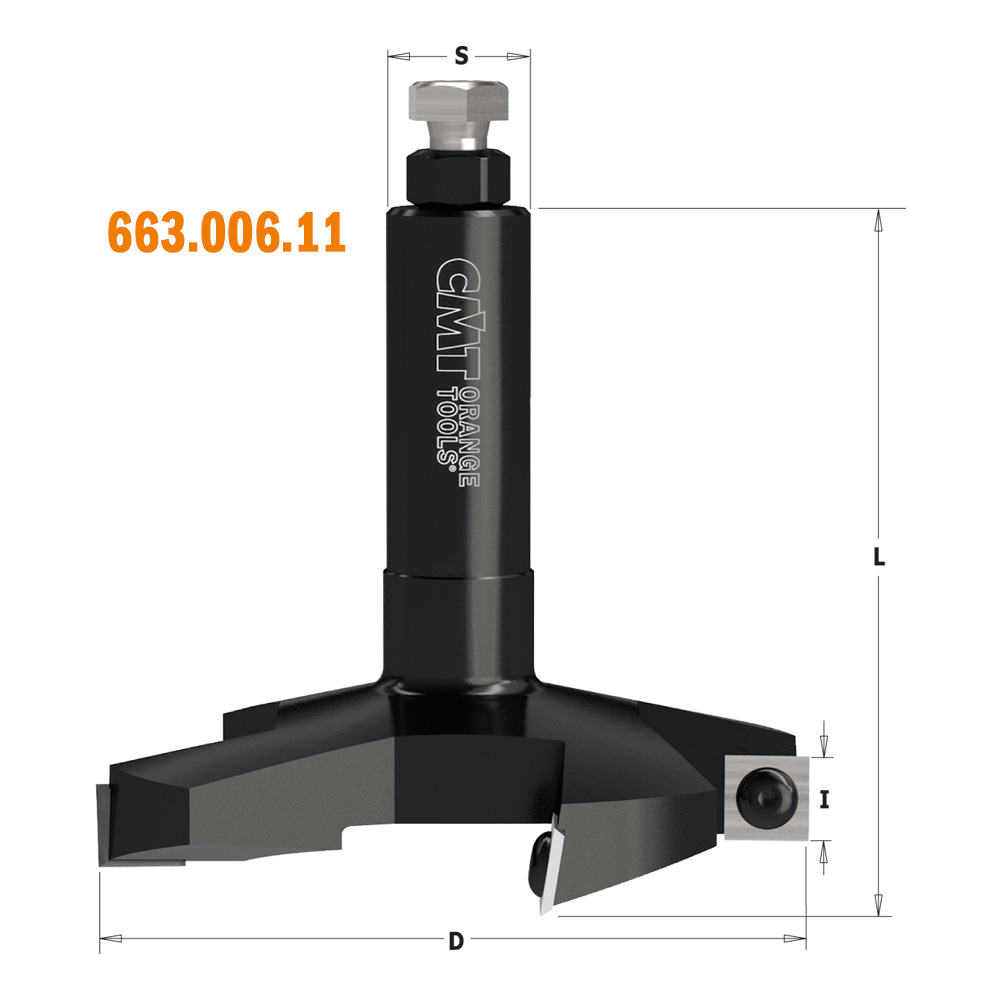

663.006.11
|
4'' | 12mm | 3-35/64'' | 20mm | RH | 790.120.03 | 990.075.00 | 991.061.00 | 990.020.00 | 990.036.00 |
