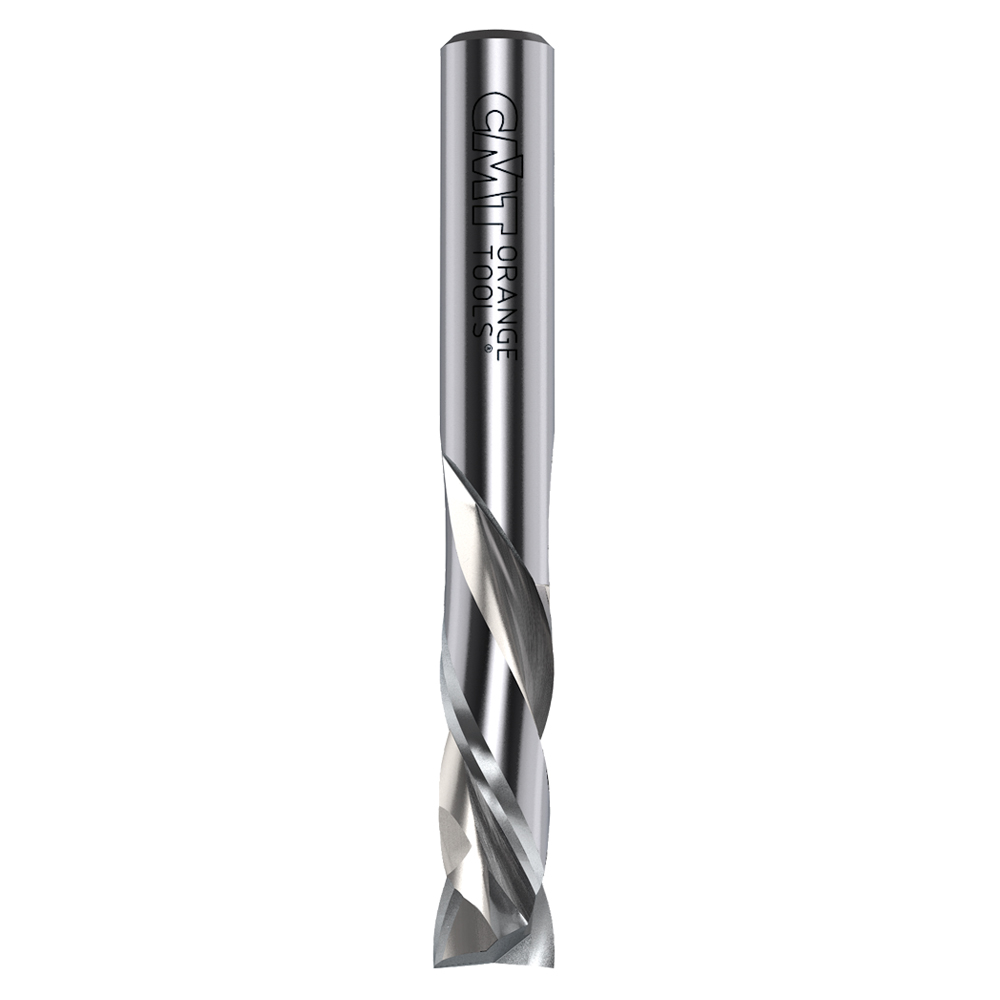

Solid carbide up & downcut spiral bits
190
Sharp technology with a new twist
A special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tools run cooler and the edges last longer.
Increased feed rate and improved cutting quality for enhanced productivity with CMT!
TECHNICAL FEATURES:
• Premium quality HWM.
• 2+2 spiral cutting edges (Z2+2).
• Provide an excellent finish on both the upper and the lower side of the workpiece.
Details
Used for cutting, copying, panel sizing and any routing applications on solid wood, wood composites, plastic materials and laminates. Use a high feed speed on well-clamped workpieces. Can be used on machining centres, point to point machines, CNC routers and hand-held routers equipped with chucks or adaptors.
Variations
Filter

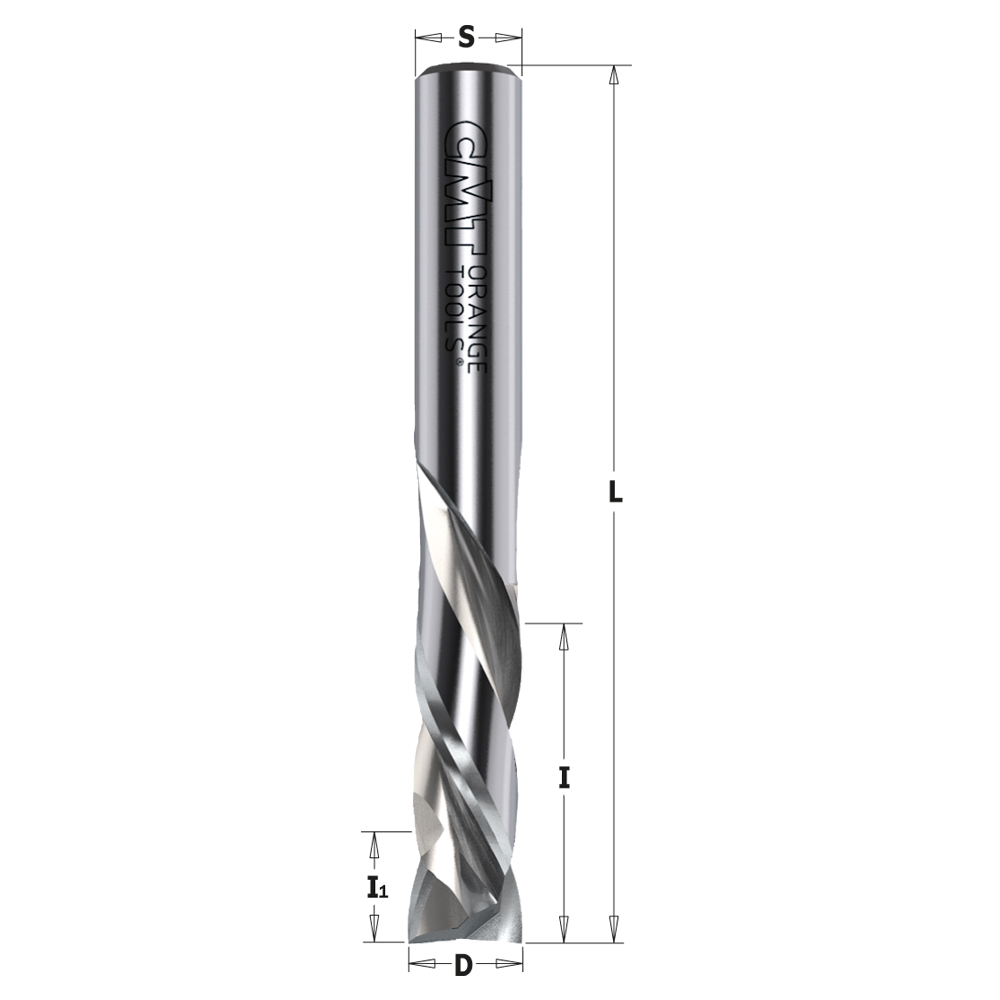

| Item Code | Description | D | I | I1 | L | S | Z | MAT | |
|---|---|---|---|---|---|---|---|---|---|
|
190.008.11
|
Solid Carbide Upcut & Downcut Spiral Bits Z2+2 | 1/4'' | 7/8'' | 1/4'' | 2-1/2'' | 1/4'' | 2 + 2 | HWM | |
|
190.504.11
|
Solid Carbide Upcut & Downcut Spiral Bits Z2+2 | 3/8'' | 1-1/8'' | 9/32'' | 3'' | 3/8'' | 2 + 2 | HWM | |
|
190.513.11
|
Mortise Compression Upcut & Downcut Z2+2 | 3/8'' | 7/8'' | 3/16'' | 3'' | 3/8'' | 2 + 2 | HWM | |
|
190.813.11
|
Mortise Compression Upcut & Downcut Z3+3 | 3/8'' | 1'' | 13/64'' | 3'' | 3/8'' | 3 + 3 | HWM | |
|
190.815.11
|
Mortise Compression Upcut & Downcut Z3+3 | 1/2'' | 1-1/8'' | 1/4'' | 3'' | 1/2'' | 3 + 3 | HWM | |
|
190.515.11
|
Mortise Compression Upcut & Downcut Z2+2 | 1/2'' | 7/8'' | 13/64'' | 3'' | 1/2'' | 2 + 2 | HWM | |
|
190.517.11
|
Mortise Compression Upcut & Downcut Z2+2 | 1/2'' | 1-3/8'' | 13/64'' | 3-1/2'' | 1/2'' | 2 + 2 | HWM | |
|
190.505.11
|
Solid Carbide Upcut & Downcut Spiral Bits Z2+2 | 1/2'' | 1'' | 15/32'' | 3'' | 1/2'' | 2 + 2 | HWM | |
|
190.506.11
|
Solid Carbide Upcut & Downcut Spiral Bits Z2+2 | 1/2'' | 1-1/8'' | 15/32'' | 3'' | 1/2'' | 2 + 2 | HWM | |
|
190.507.11
|
Solid Carbide Upcut & Downcut Spiral Bits Z2+2 | 1/2'' | 1-3/8'' | 15/32'' | 3-1/2'' | 1/2'' | 2 + 2 | HWM | |
|
190.508.11
|
Solid Carbide Upcut & Downcut Spiral Bits Z2+2 | 1/2'' | 1-5/8'' | 15/32'' | 4'' | 1/2'' | 2 + 2 | HWM |
