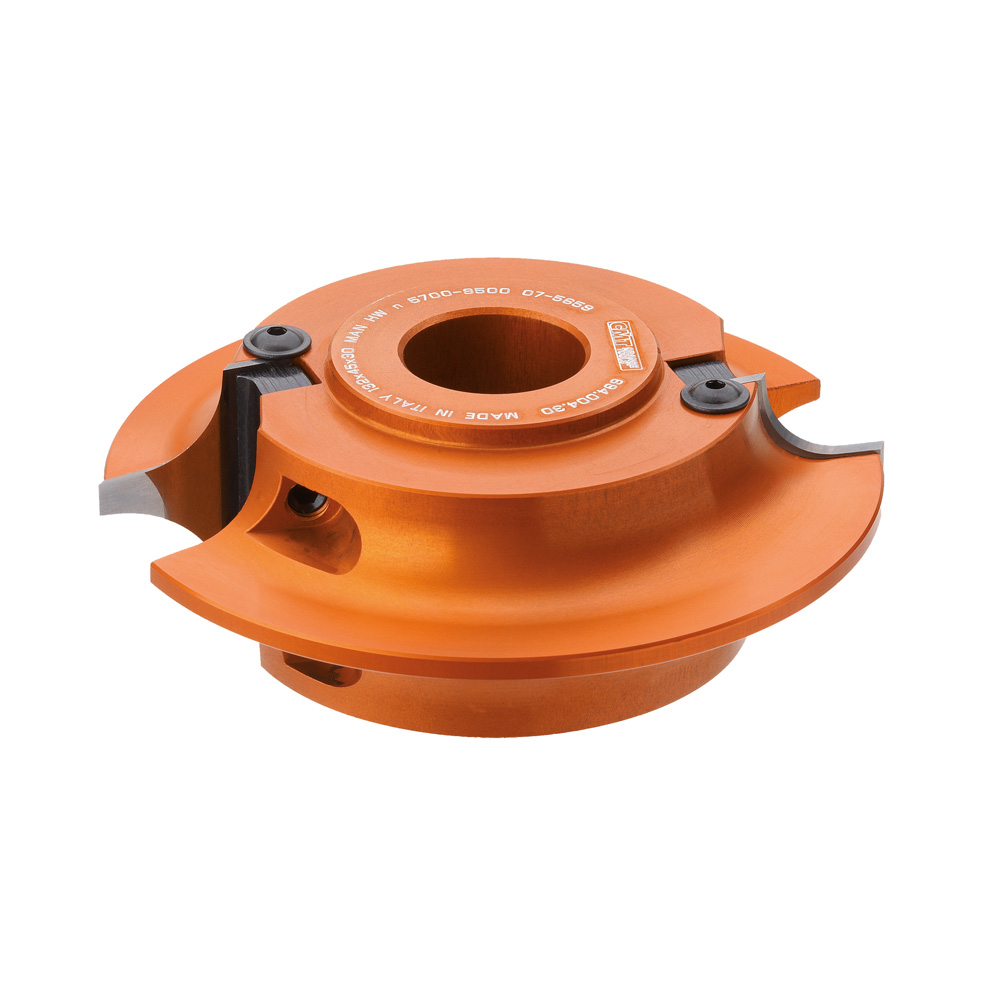

Multiradius roundover cutter heads
694.004

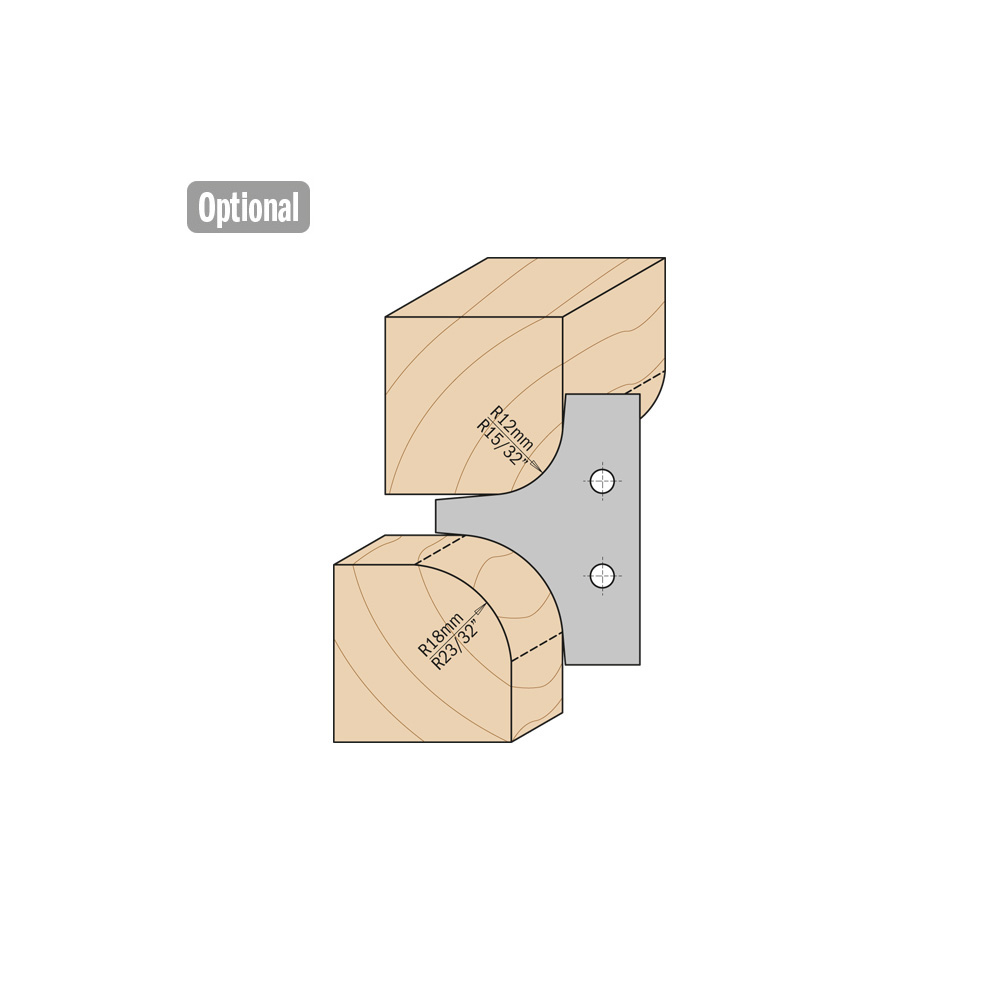

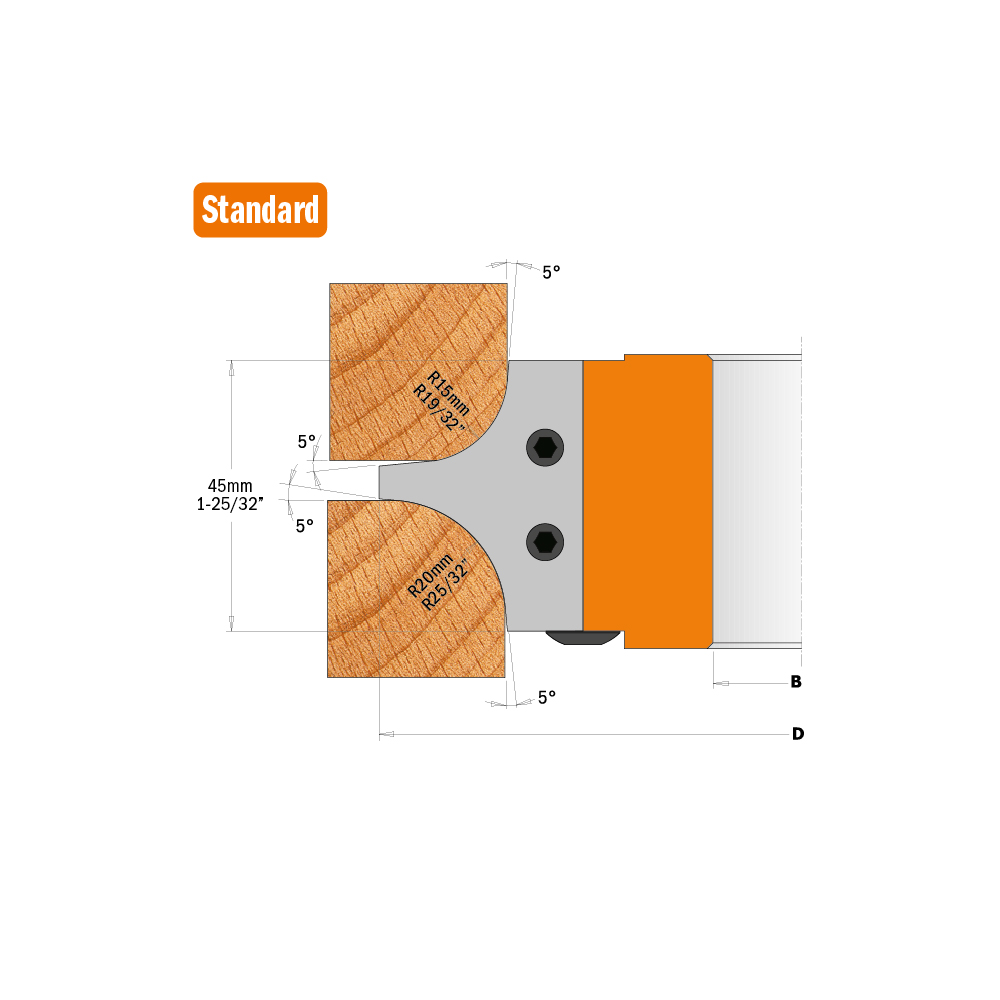

Innovative cutter heads supporting two different knives for making four radius roundover profiles. Standard cutter heads are sold with knives featuring radii 15 and 20mm; one more knife set is available for radii 12-18mm.
For use on spindle moulder machines, double-end tenorer and shaper machines.
Suitable for all materials, but ideal on solid wood and panel materials.
For use on spindle moulder machines, double-end tenorer and shaper machines.
Suitable for all materials, but ideal on solid wood and panel materials.
Technical details:
- Hard aluminium alloy body with high resistance to tensile and yield stress.

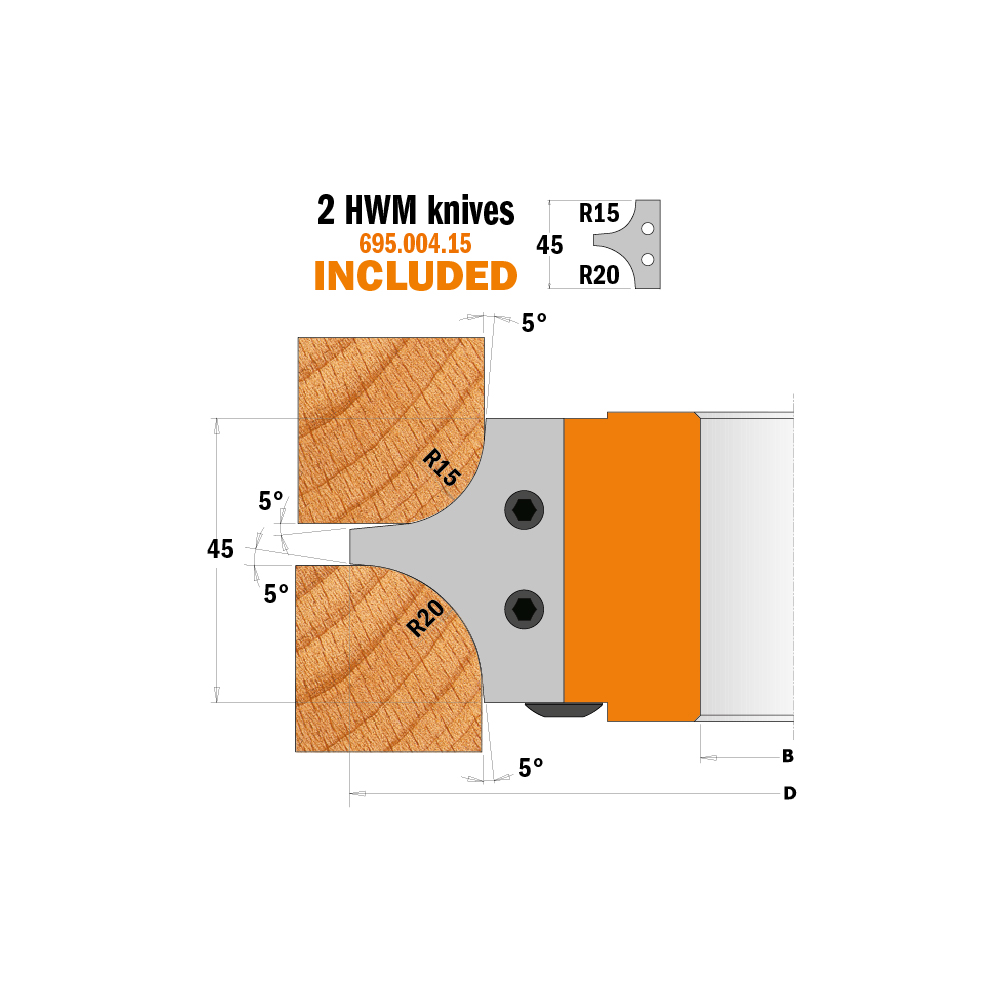

- 2 HWM knives radius 15/20mm (45x34,5x2mm) [Z2].
- Tools for manual feed (MAN).
-
Pins for the automatic positioning of the knives.
Supplied in a solid plastic box.
Details
Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.
Variations
Filter
| Item Code | D | B | Z | MAX RPM | MAT |
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
694.004.31
|
5-13/64'' | 1-1/4'' | 2 | 5700~9500 | HW | 695.004.15 | 695.999.42 | 990.064.00 | 991.064.00 | 695.004.12 |
