Flush trim router bits
7/8/906
We have designed a series of truly indispensable bits available in a wide range of sizes for your woodworking needs.

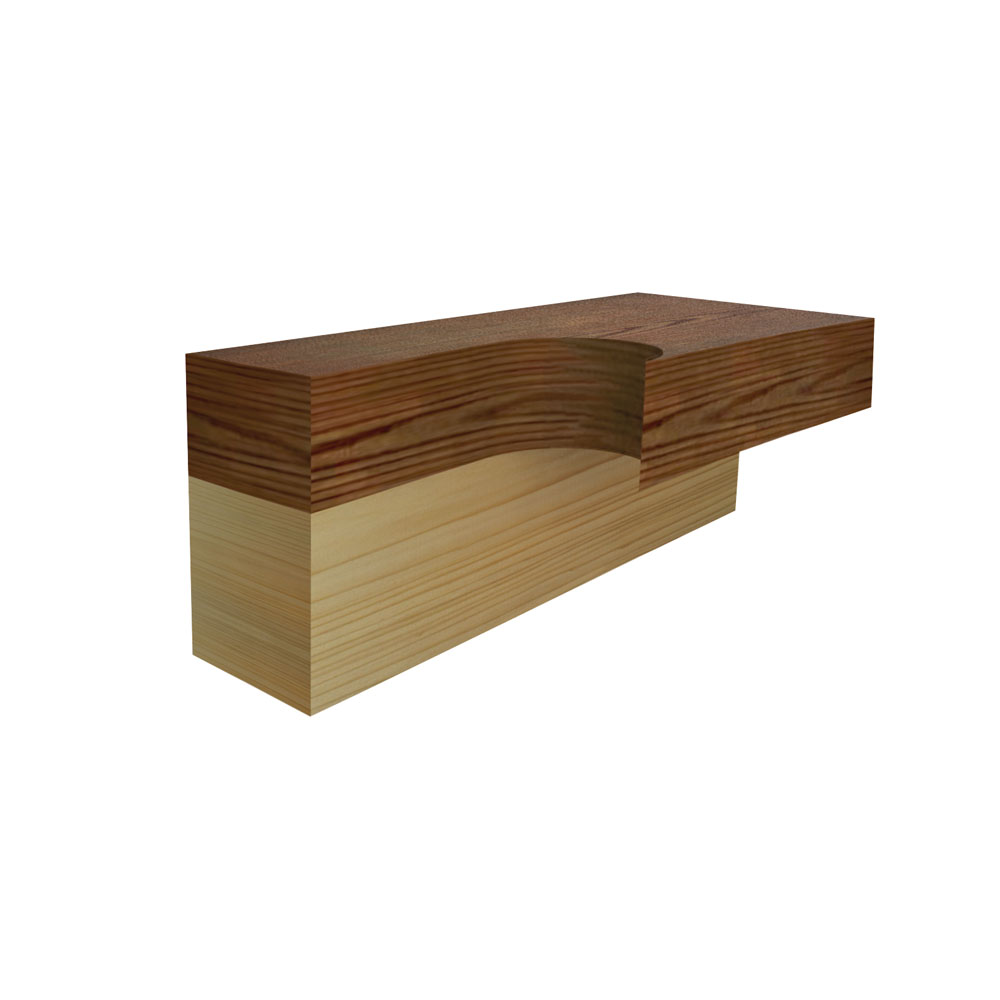

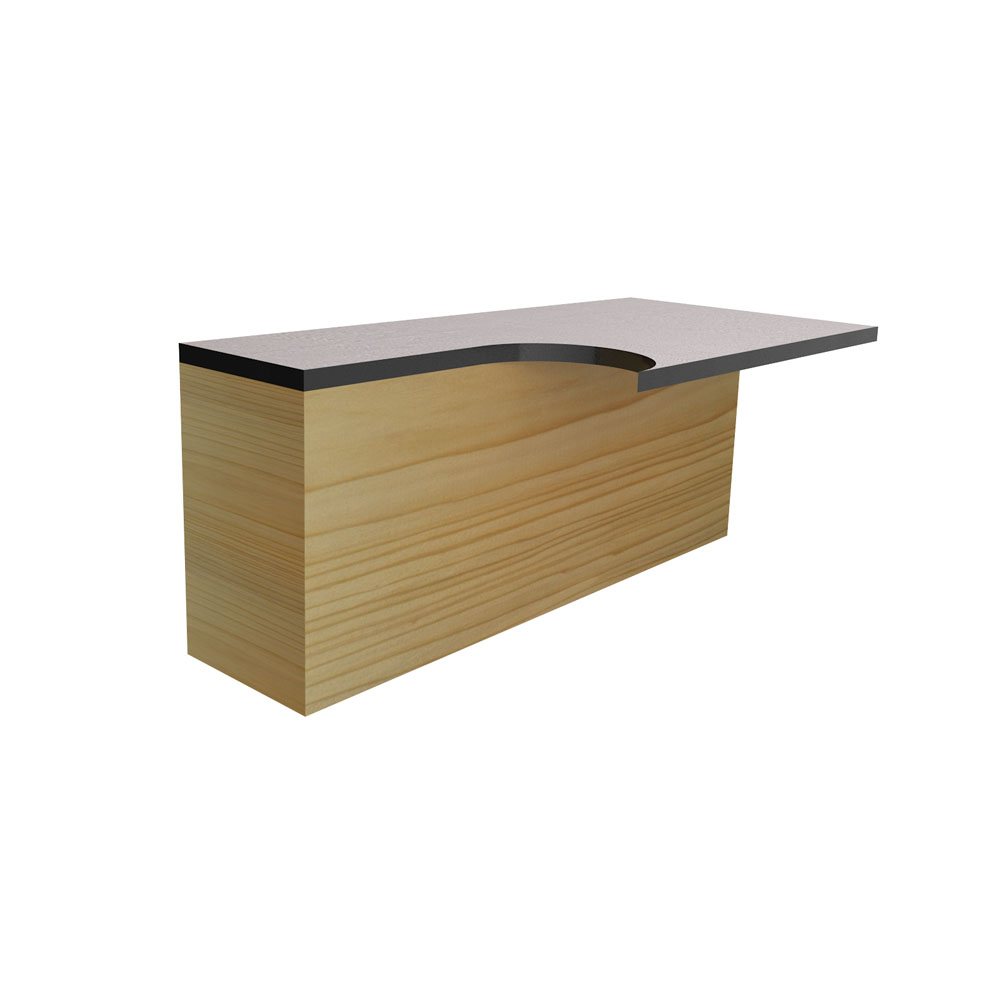

For precision work on laminates or quick template work with excellent finishing.
For precision work on laminates or quick template work with excellent finishing.
Shop tips: these bits are excellent for making through mortises. Use a straight bit (#711.130.11) to groove the through mortise area, then use the drill bit (#517.130.31) to bore a through hole at the end of the groove.
Turn the workpiece over to end the mortise. Use the flush trim bit with a cutting length slightly longer than the fillet, following the groove made on the opposite side of the workpiece with the ball bearing guide.
Turn the workpiece over to end the mortise. Use the flush trim bit with a cutting length slightly longer than the fillet, following the groove made on the opposite side of the workpiece with the ball bearing guide.
Shop tips: undersized bearing to use after resharpening.
791.062.00 Ø9,3 replace bearing 791.002.00 (Ø9,5) after resharpening.
791.063.00 Ø12,5 replace bearing 791.003.00 (Ø12,7) after resharpening.
791.062.00 Ø9,3 replace bearing 791.002.00 (Ø9,5) after resharpening.
791.063.00 Ø12,5 replace bearing 791.003.00 (Ø12,7) after resharpening.
706.064.11 - HWM
806.064.11 - HWM
906.693.11 Warning!
Long cutting edge. Carefully make several shallow passes to prevent damaging the tool.
The warranty does not cover improper or incorrect use of the tool.
Long cutting edge. Carefully make several shallow passes to prevent damaging the tool.
The warranty does not cover improper or incorrect use of the tool.
Details
Variations
Filter

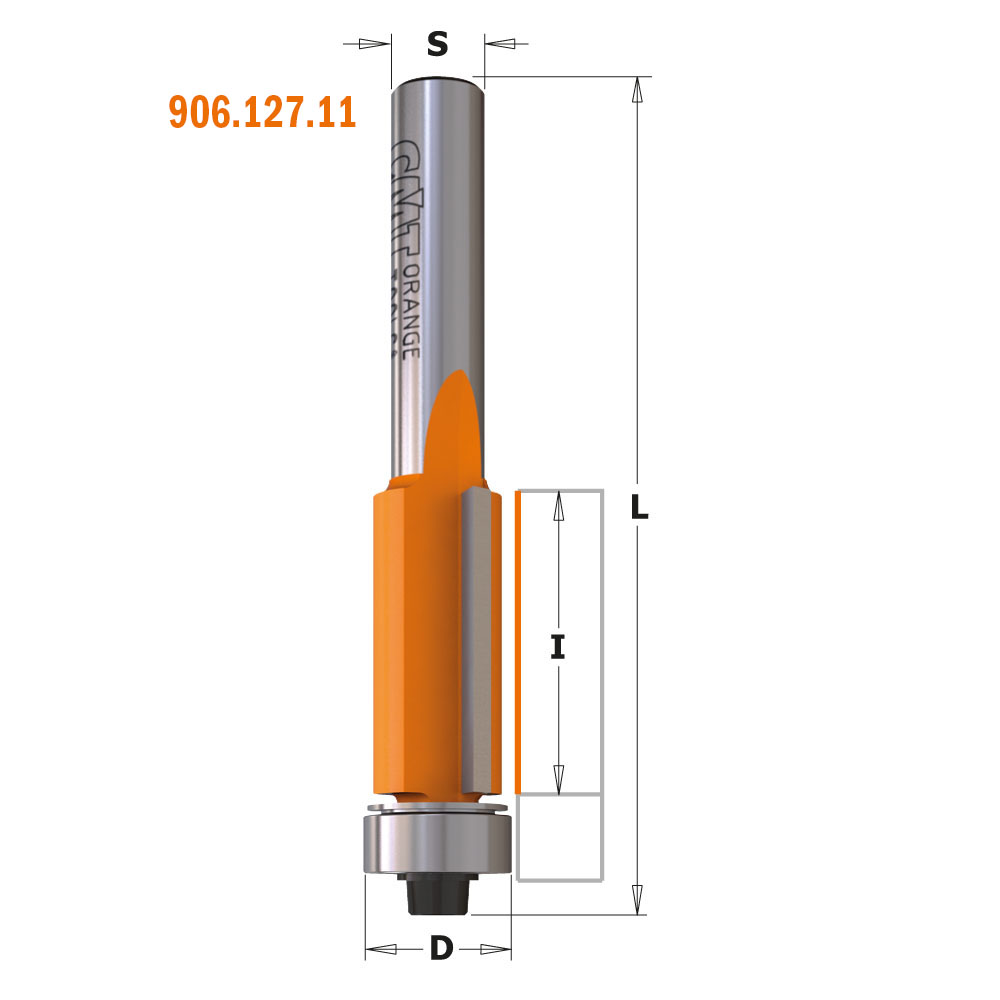

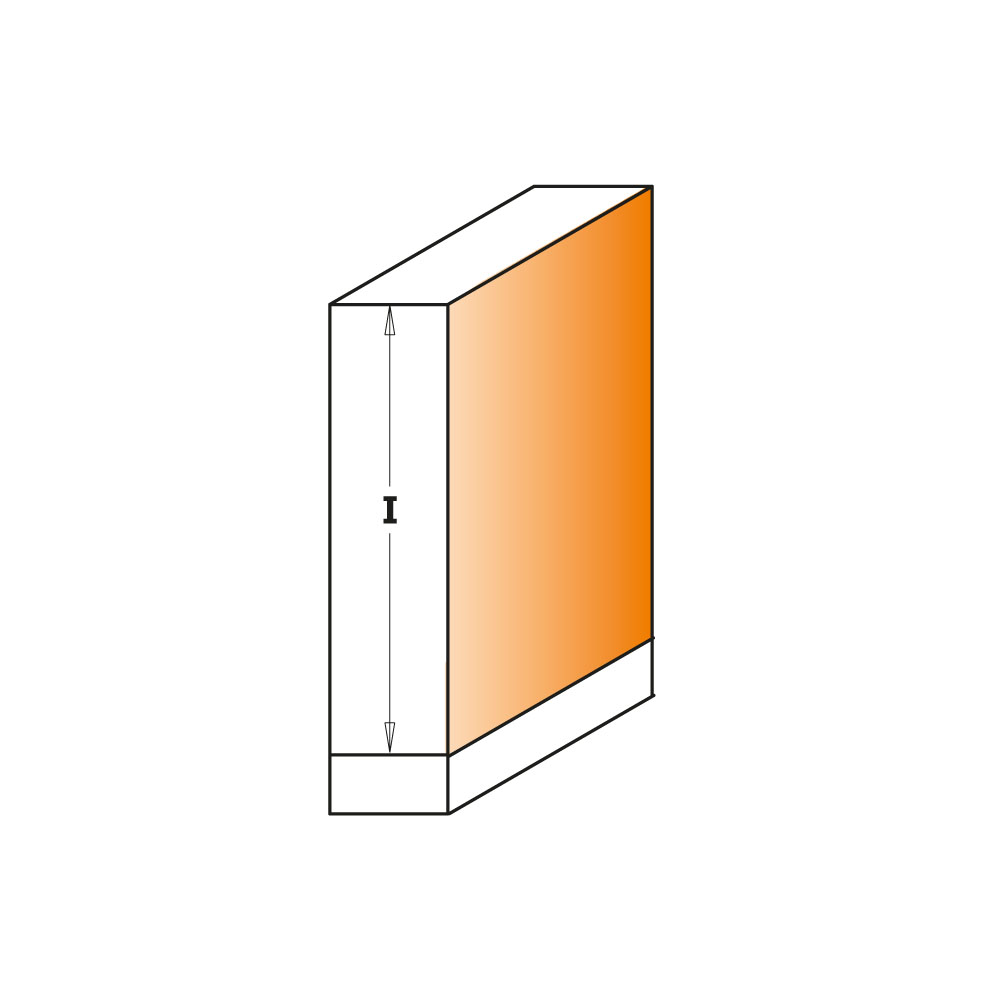

| Item Code | I | D | L | S | Z | MAT | RH-LH |
|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
806.064.11
|
1'' | 1/4'' | 2-1/2'' | 1/4'' | 2 | HWM | RH | 791.035.00 | |||||||||
|

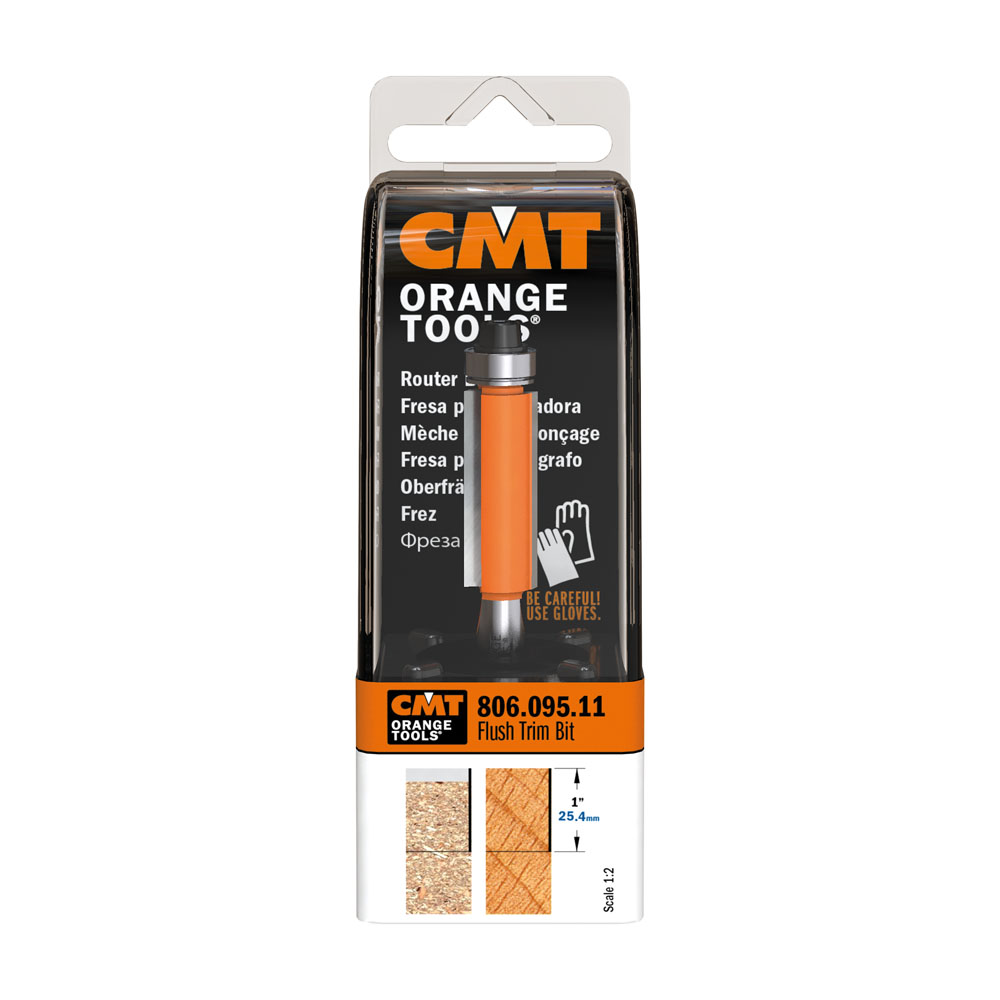

806.095.11
|
1'' | 3/8'' | 2-11/16'' | 1/4'' | 2 | HW | RH | 990.422.00 | 791.002.00 | ||||||||
|
806.095.11-X10
|
1'' | 3/8'' | 2-11/16'' | 1/4'' | 2 | HW | RH | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | ||||||
|
806.096.11
|
1/2'' | 3/8'' | 2-11/64'' | 1/4'' | 2 | HW | RH | 990.422.00 | 791.002.00 | ||||||||
|
806.096.11-X10
|
1/2'' | 3/8'' | 2-11/64'' | 1/4'' | 2 | HW | RH | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | ||||||
|

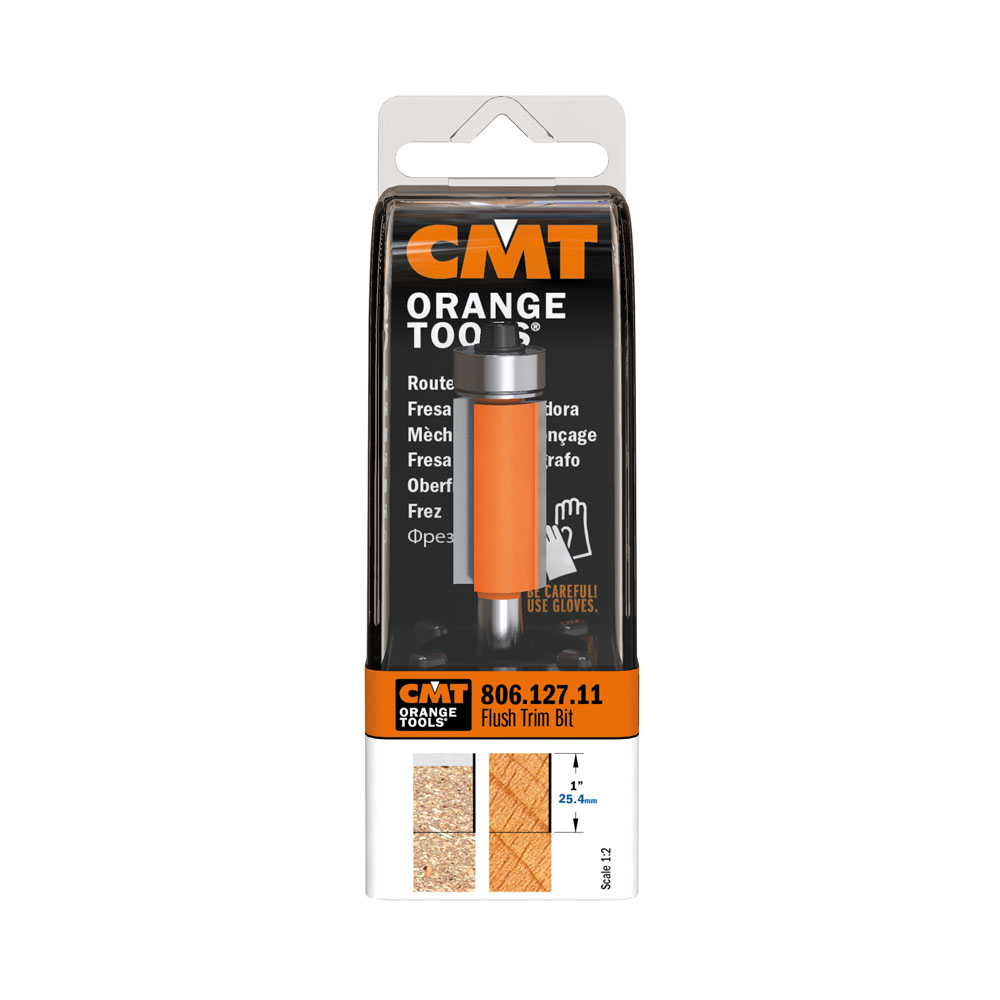

806.127.11
|
1'' | 1/2'' | 2-25/32'' | 1/4'' | 2 | HW | RH | 990.423.00 | 791.003.00 | ||||||||
|
806.127.11-X10
|
1'' | 1/2'' | 2-25/32'' | 1/4'' | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 | ||||||
|

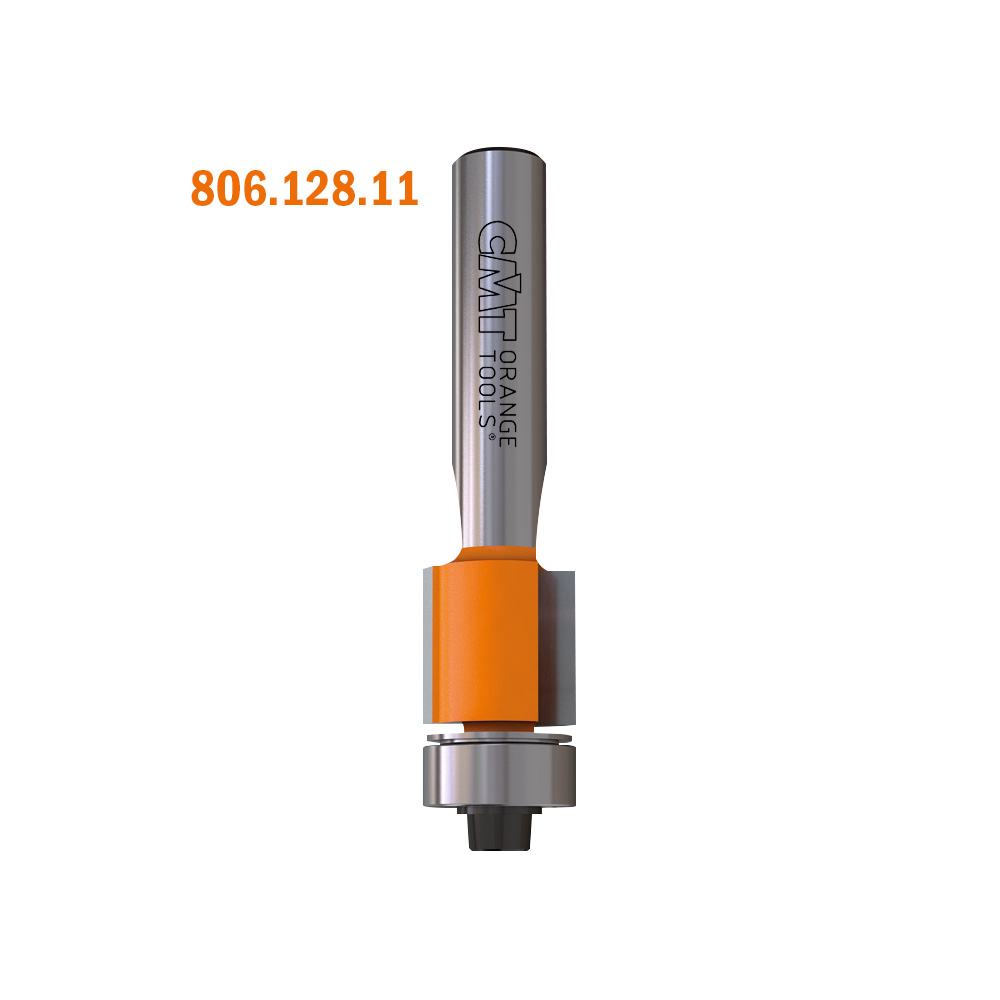

806.128.11
|
1/2'' | 1/2'' | 2-9/32'' | 1/4'' | 2 | HW | RH | 990.423.00 | 791.003.00 | ||||||||
|

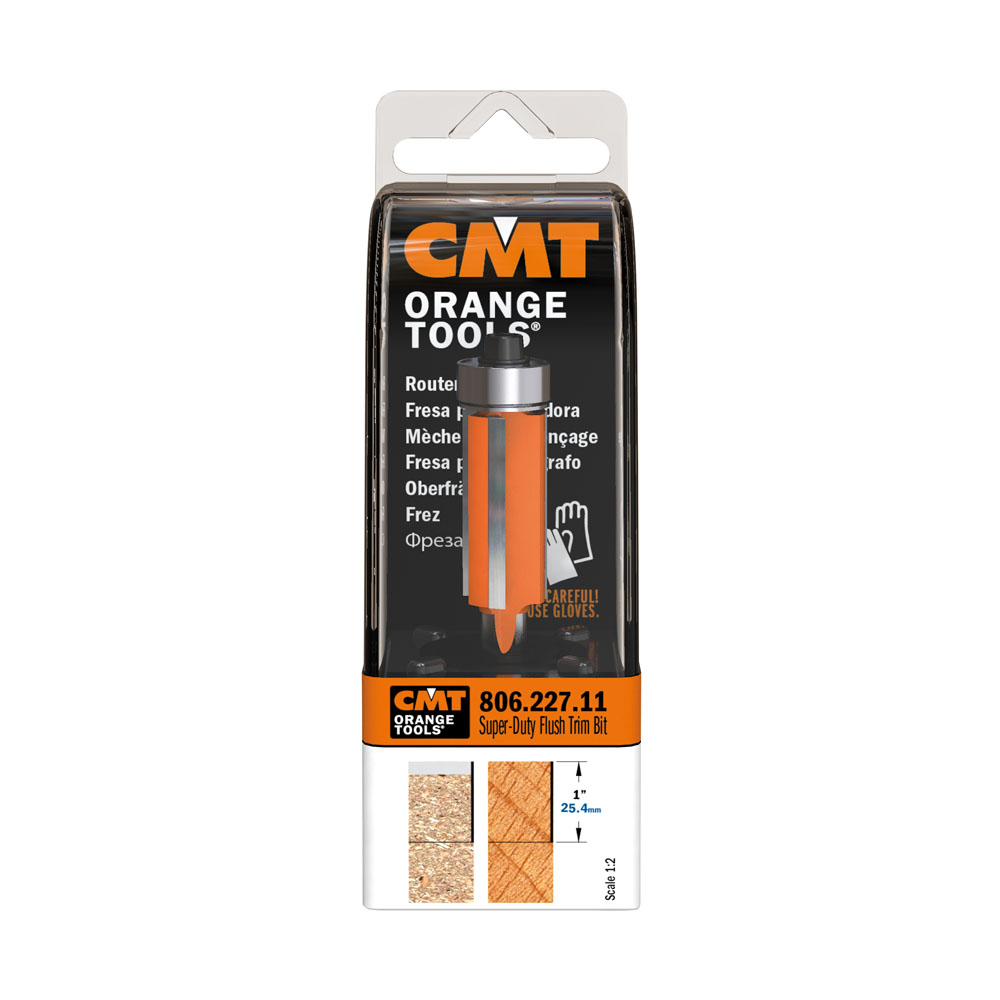

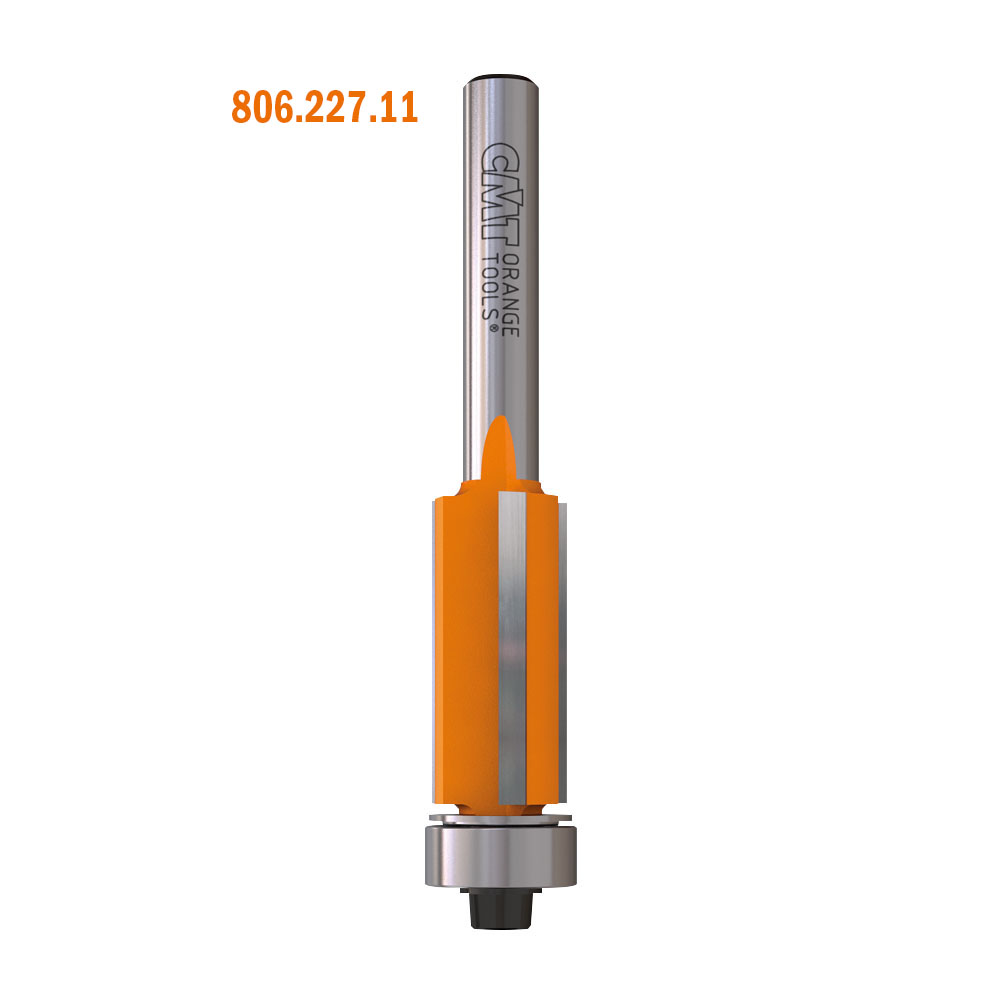

806.227.11
|
1'' | 1/2'' | 2-51/64'' | 1/4'' | 3 | HW | RH | 990.423.00 | 791.003.00 | ||||||||
|

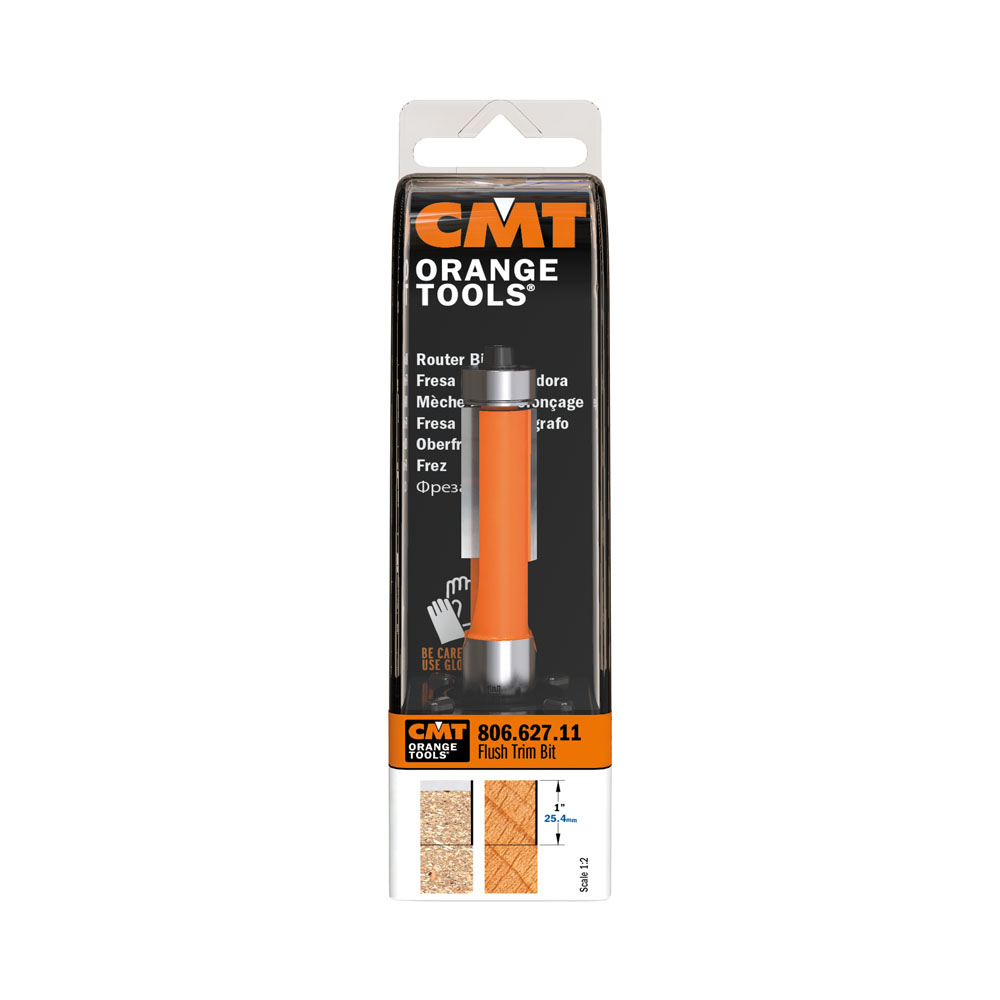

806.627.11
|
1'' | 1/2'' | 3-13/32'' | 1/2'' | 2 | HW | RH | 990.423.00 | 791.003.00 | ||||||||
|
806.627.11-X10
|
1'' | 1/2'' | 3-13/32'' | 1/2'' | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 | ||||||
|
806.628.11
|
1/2'' | 1/2'' | 2-25/32'' | 1/2'' | 2 | HW | RH | 990.423.00 | 791.003.00 | ||||||||
|

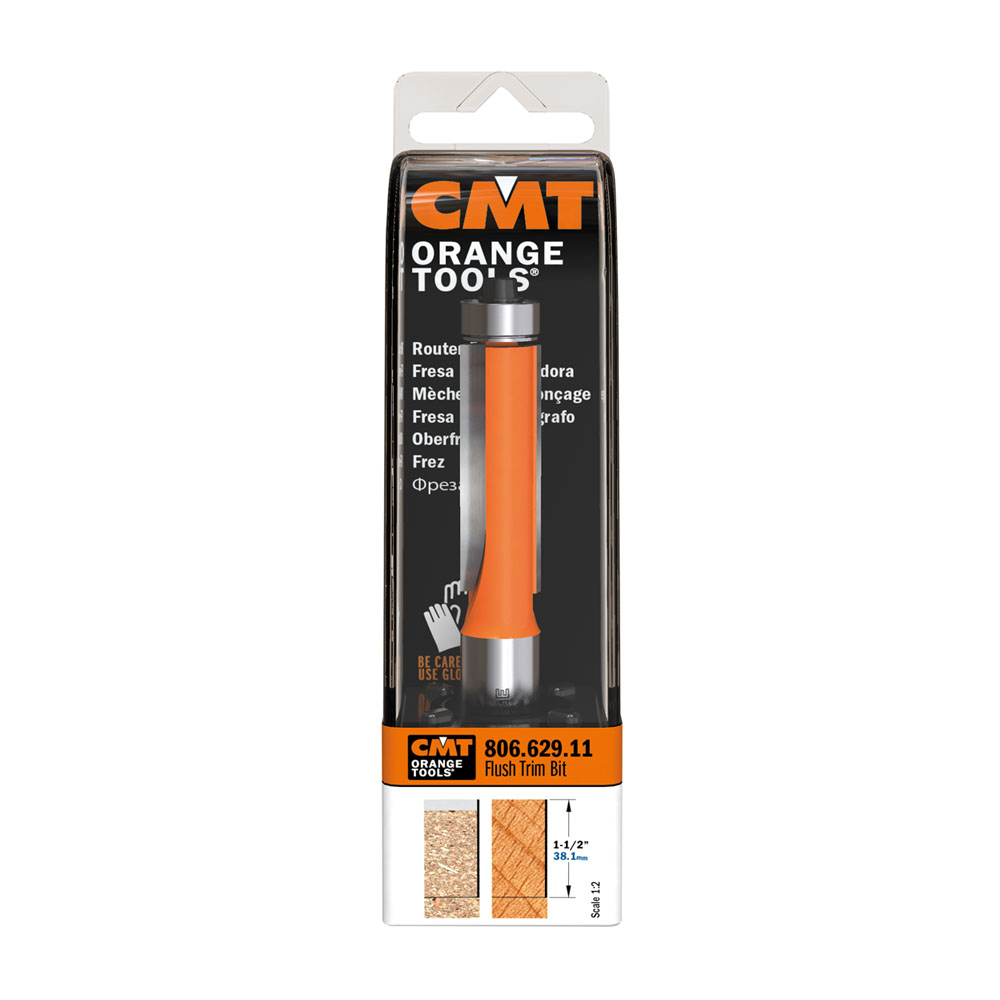

806.629.11
|
1-1/2'' | 1/2'' | 3-45/64'' | 1/2'' | 2 | HW | RH | 990.423.00 | 791.003.00 | ||||||||
|
806.630.11
|
2'' | 1/2'' | 4-3/32'' | 1/2'' | 2 | HW | RH | 990.423.00 | 791.003.00 | ||||||||
|
806.690.11
|
2'' | 3/4'' | 4-5/16'' | 1/2'' | 2 | HW | RH | 990.425.00 | 791.004.00 | ||||||||
|

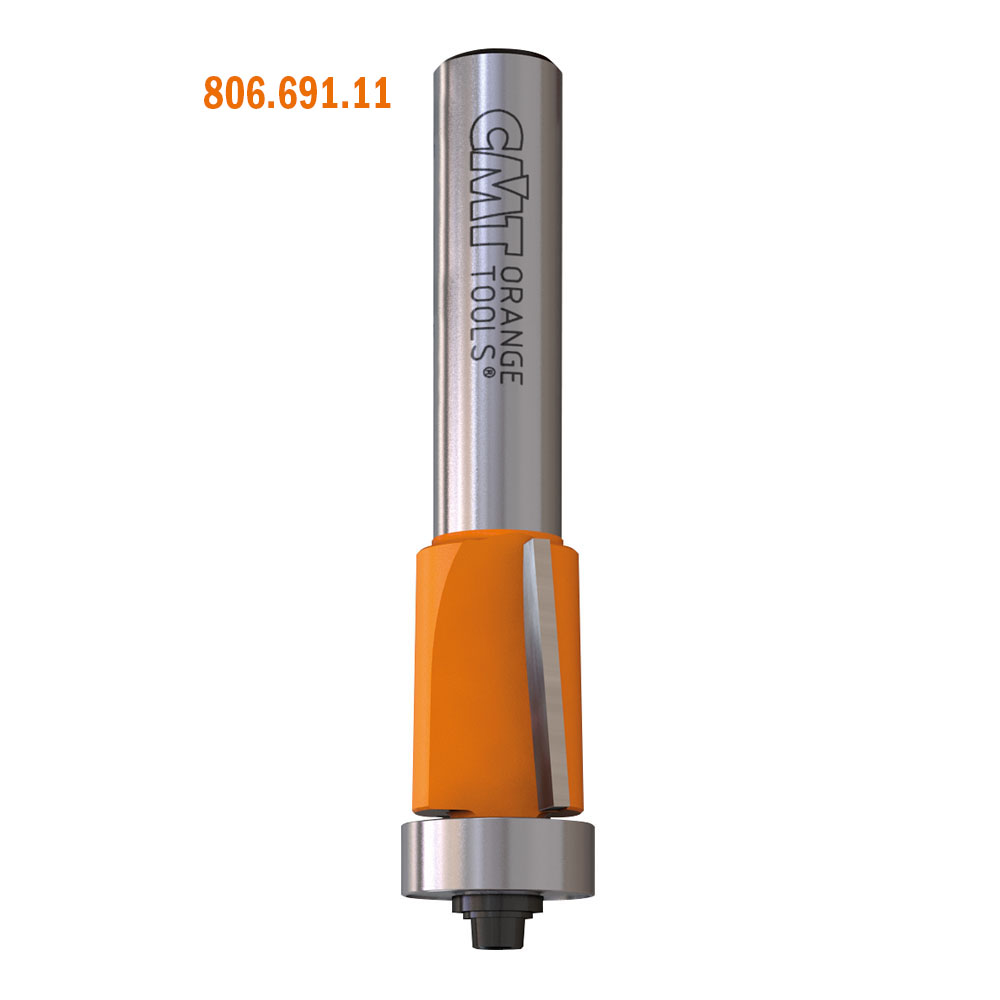

806.691.11
|
1'' | 3/4'' | 3-7/16'' | 1/2'' | 2 | HW | RH | 990.425.00 | 791.004.00 | ||||||||
|
806.692.11
|
1-1/2'' | 3/4'' | 3-11/16'' | 1/2'' | 2 | HW | RH | 990.425.00 | 791.004.00 | ||||||||
|

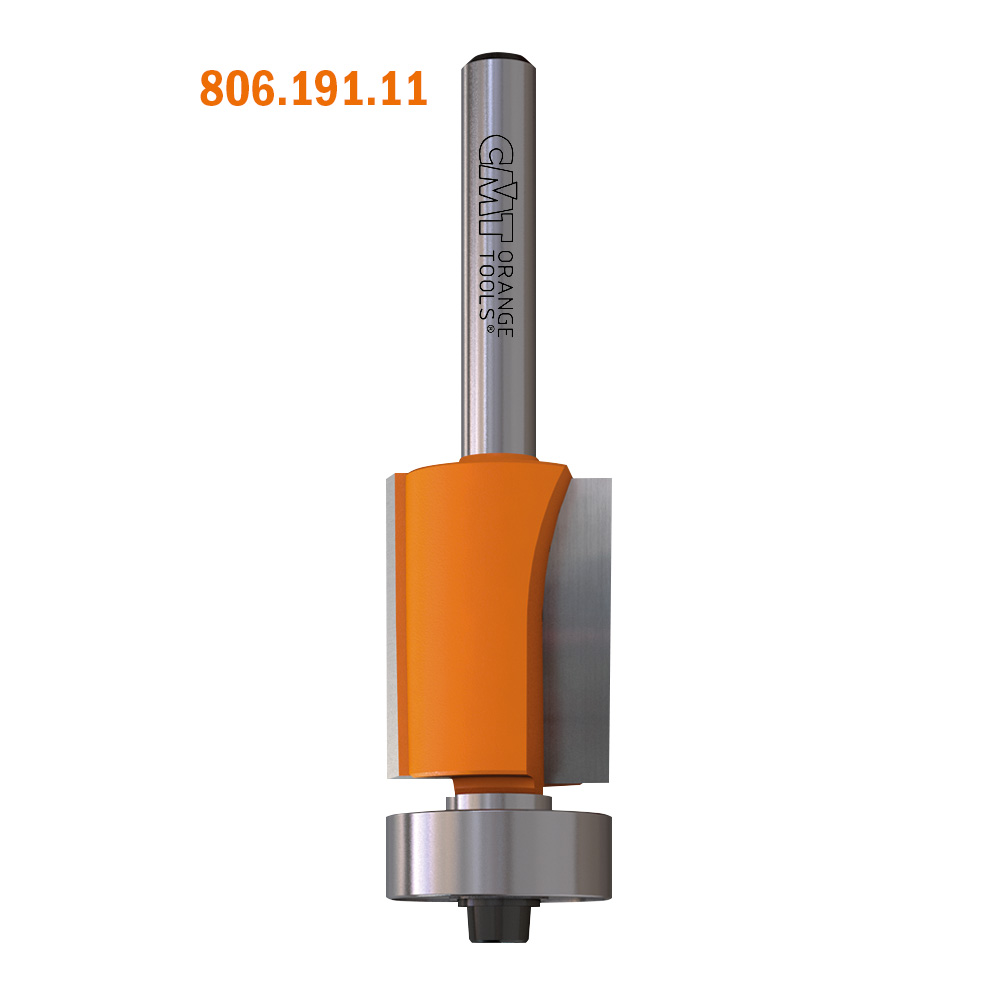

806.191.11
|
1'' | 3/4'' | 2-29/32'' | 1/4'' | 2 | HW | RH | 990.425.00 | 791.004.00 |
