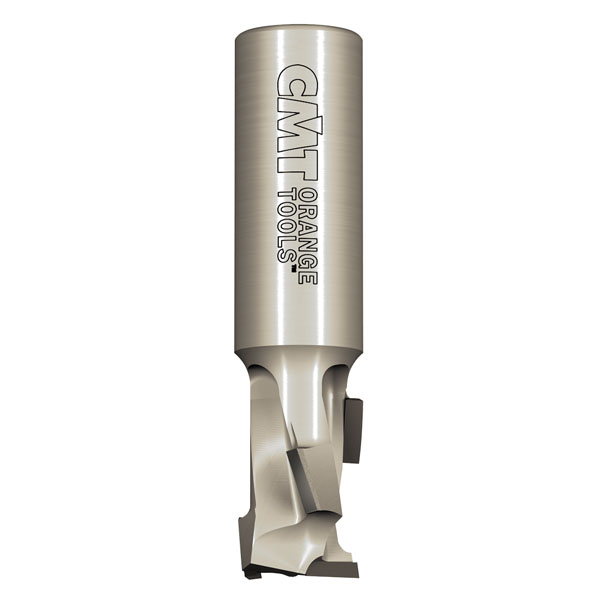

Diamond router cutters with shear angle
140
TECHNICAL DETAILS:
- Strength steel.
- Shear angle. - DP cutting edge (H2,5).
- HW plunging tip for diagonal plunge-cutting.
- Resharpeable (max 3 times).
- Max feed speed 5 m/min.
Details
for contour cutting and panel sizing
on hard and abrasive materials such as laminates,
MDF and melamine. For use on machining centers,
point to point boring machines and CNC pantographs
equipped with adaptors and chucks.
Variations
Filter

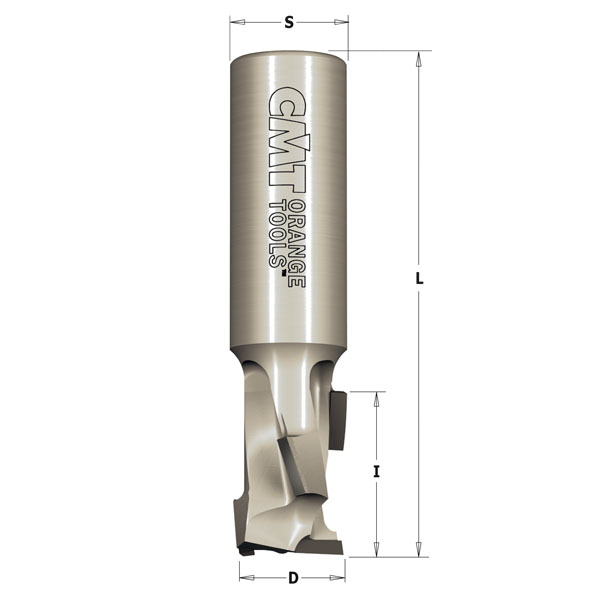

| Item Code | Description | D | I | L | S | RH-LH | MAT | |
|---|---|---|---|---|---|---|---|---|
|
140.127.61
|
Cutting edges 1+1 (3DP+1HW) | 1/2'' | 1'' | 3'' | 1/2'' | RH | DP | |
|
140.128.61
|
Cutting edges 1+1 (4DP+1HW) | 1/2'' | 1-3/8'' | 3-11/32'' | 1/2'' | RH | DP | |
|
140.158.61
|
Cutting edges 1+1 (3DP+1HW) | 5/8'' | 1-1/16'' | 3-11/32'' | 5/8''x50mm | RH | DP | |
|
140.159.61
|
Cutting edges 1+1 (5DP+1HW) | 5/8'' | 1-49/64'' | 4-1/16'' | 5/8''x50mm | RH | DP | |
|
140.190.61
|
Cutting edges 1+1 (3DP+1HW) | 3/4'' | 1'' | 3-11/32'' | 3/4''x50mm | RH | DP | |
|
140.192.61
|
Cutting edges 1+1 (5DP+1HW) | 3/4'' | 1-49/64'' | 4-1/8'' | 3/4''x50mm | RH | DP |
