Classical Ogee Bits
7/8/944

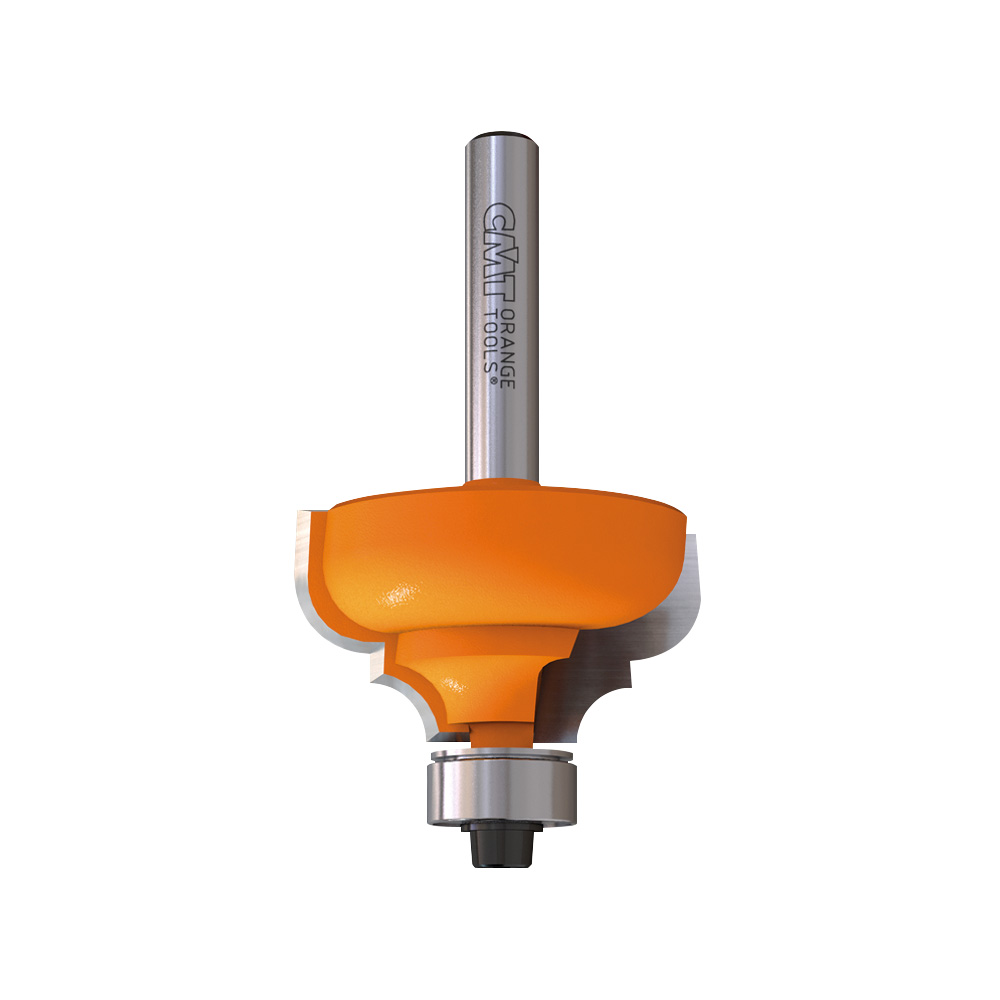

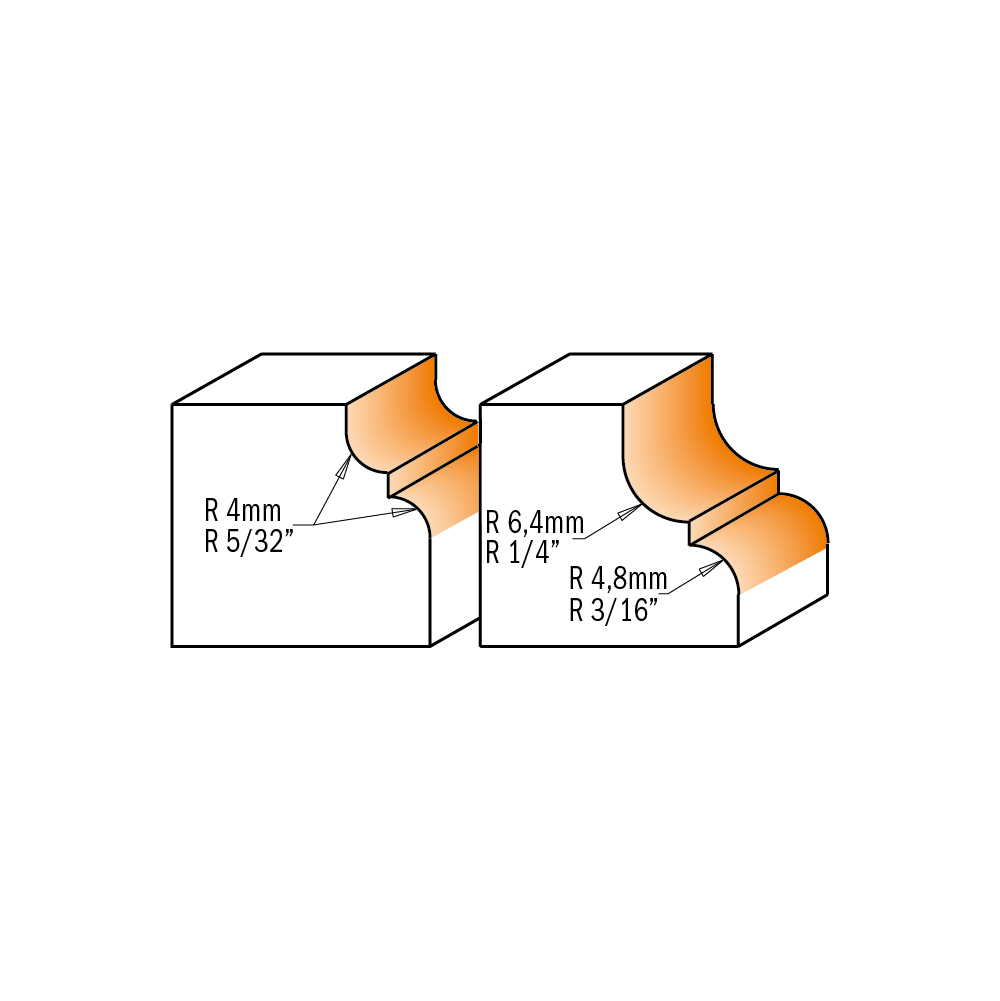

CMT’s classical ogee bits feature an inverted ogee profile, with the concave edge adjacent to the upper surface of the workpiece.
A vertical bead was added to separate the curves and creates an attractrive detail.
Shop tips:
this type of machining can be very challenging, for best results, multiple passes are recommended.
Variations
Filter

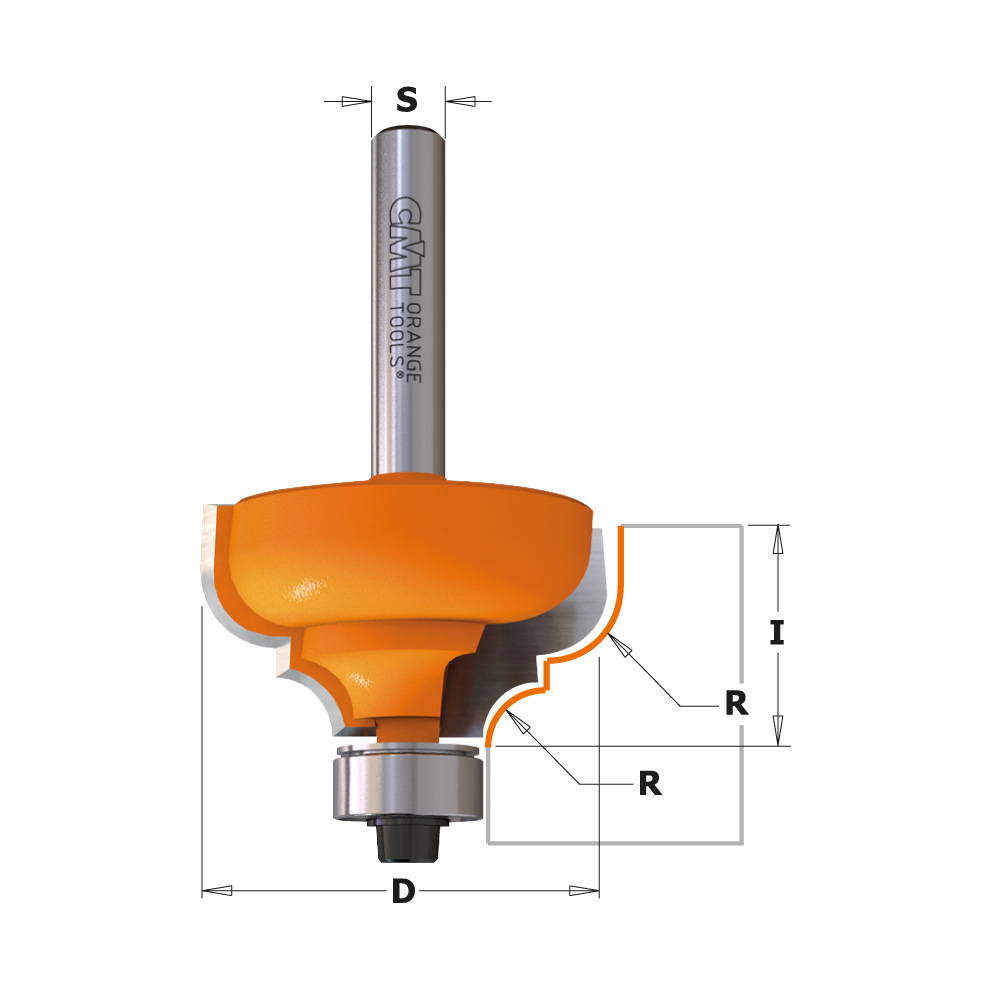

| Item Code | R | D | I | S | Z | MAT | RH-LH |
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
844.287.11
|
5/32'' | 1-1/8'' | 33/64'' | 1/4'' | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 | |
|
844.787.11
|
5/32'' | 1-1/8'' | 33/64'' | 1/2'' | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 | |
|
844.850.11
|
1/4'' | 1-3/8'' | 47/64'' | 1/2'' | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 | |
|
844.350.11
|
1/4'' | 1-3/8'' | 47/64'' | 1/4'' | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
