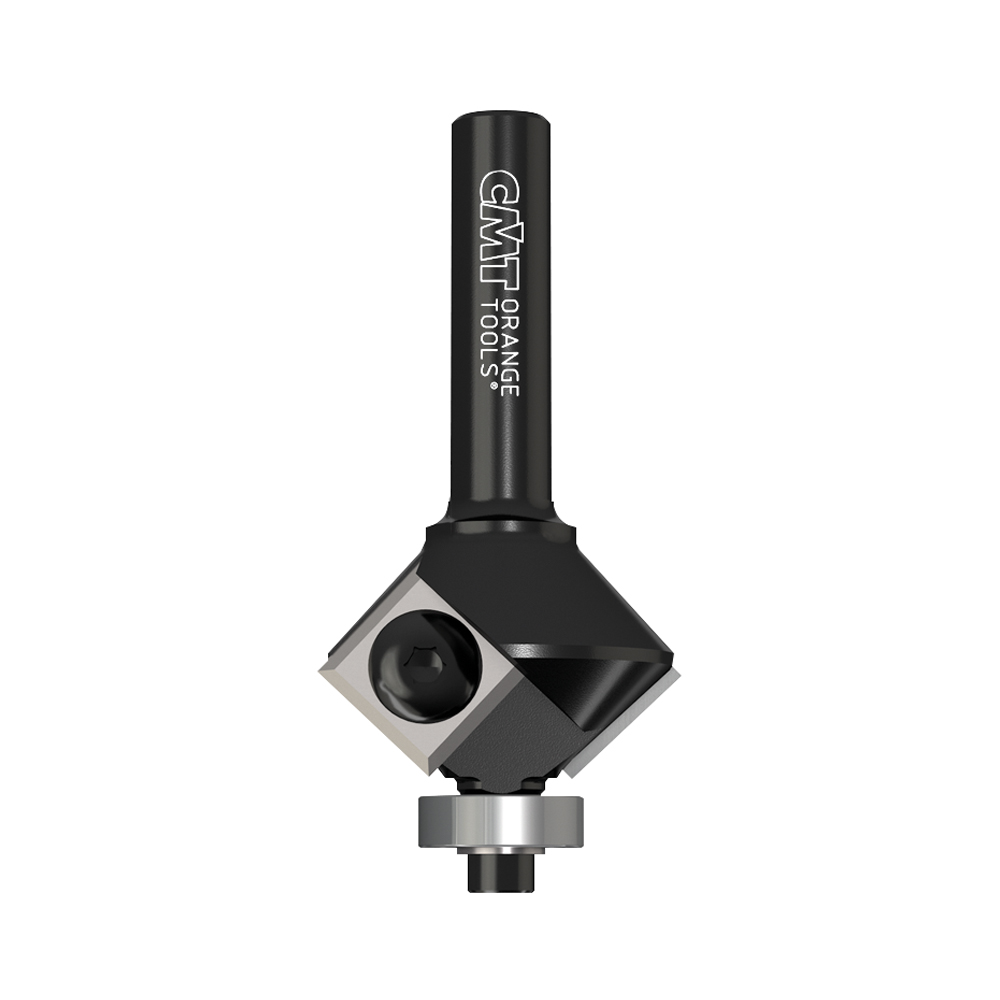

Chamfer router bits with insert knives
659
Bevel and Chamfer trim bits with two replaceable knives fixed by special Torx screws. The knives are sharpened on all 4 sides and provide three extra new edges. Guided bevel and chamfer trim bits type 659 are equipped with the ball bearing guides. Type 658 is unguided.
For specialist applications requiring economy of replaceable tips. For precision work on laminates, MDF or for quick rounded edges in hard wood.
For use on portable Routers or CNC machining centers.
For use on portable Routers or CNC machining centers.
Details
Safety Tips:
The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.
Variations
Filter

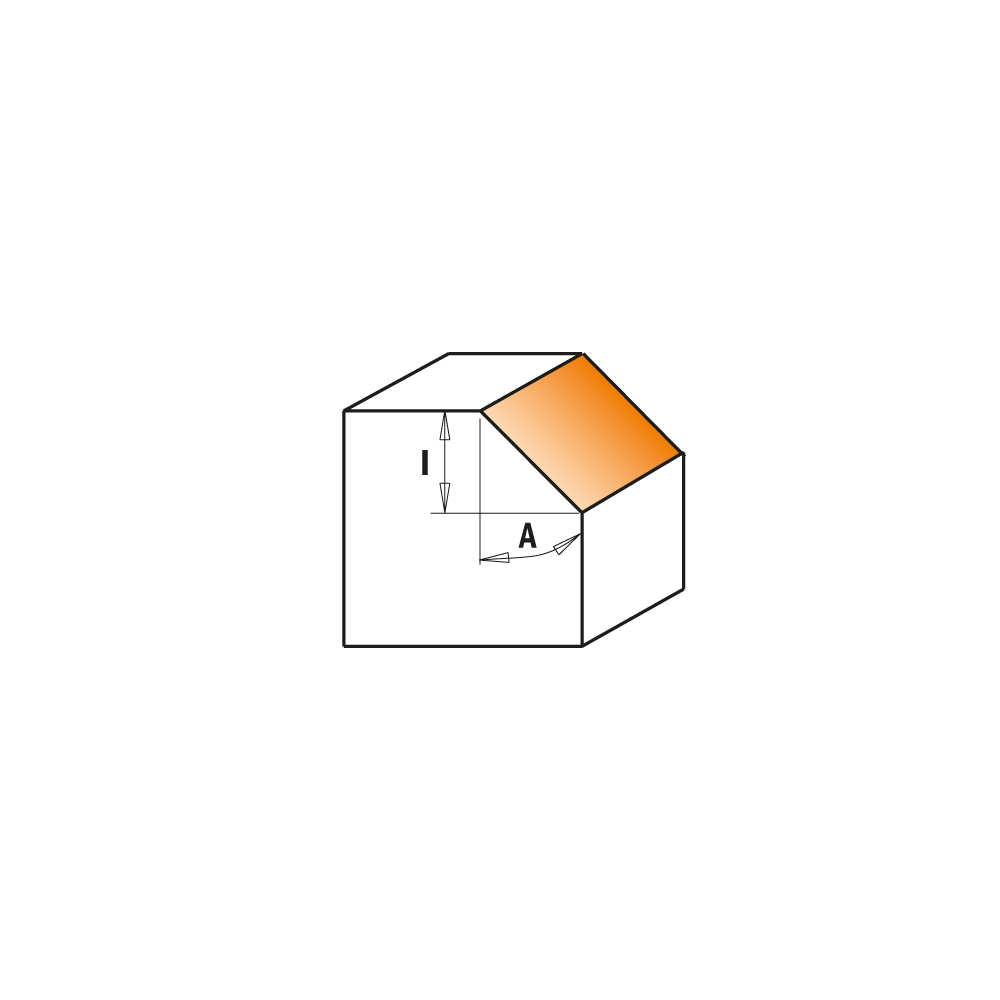

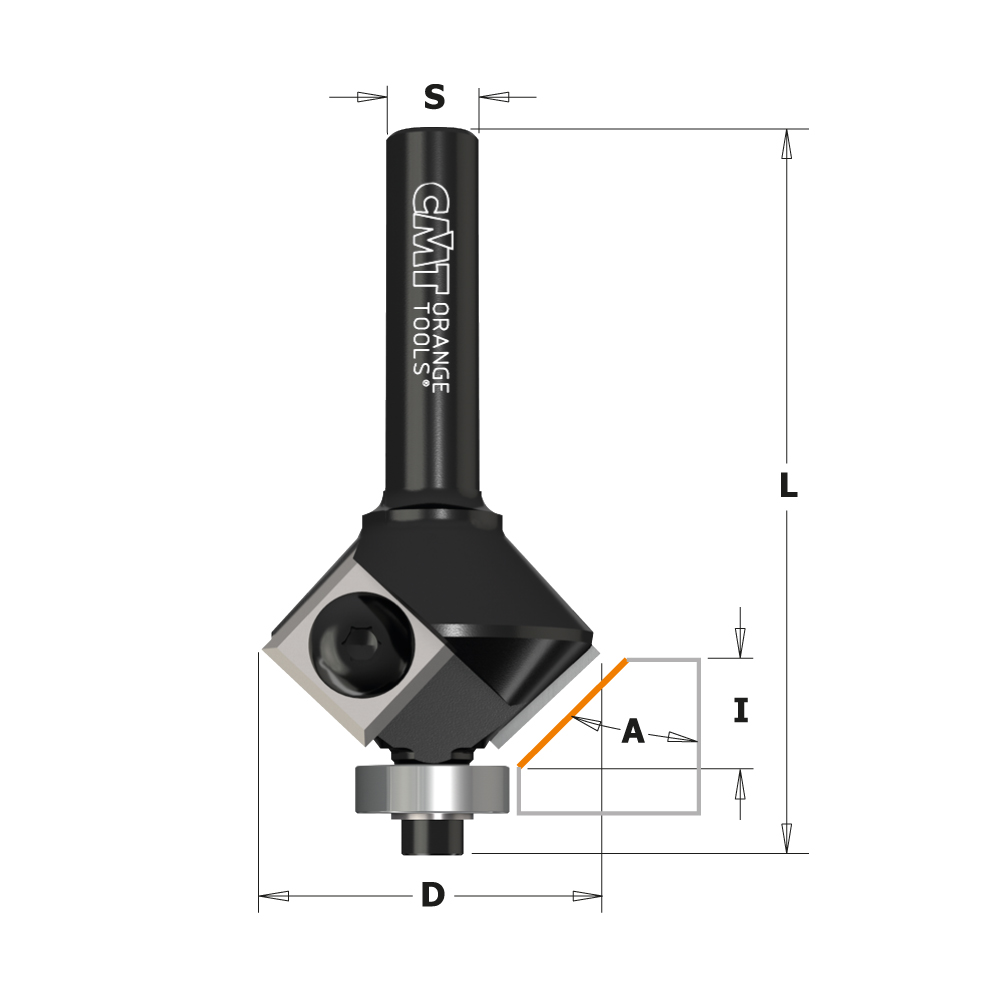

| Item Code | A | D | I | L | S | Z | MAT | RH-LH |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
659.023.11
|
22° | 63/64'' | 7/16'' | 2-15/32'' | 1/4'' | 2 | HW | RH | 790.120.00 | 990.075.00 | 991.061.00 | 791.006.00 | 990.400.00 | 990.051.00 | 991.062.00 | ||
|
659.031.11
|
30° | 1-7/64'' | 25/64'' | 2-9/16'' | 1/4'' | 2 | HW | RH | 790.120.00 | 990.075.00 | 991.061.00 | 791.006.00 | 990.400.00 | 990.051.00 | 991.062.00 | ||
|
659.046.11
|
45° | 1-9/64'' | 5/16'' | 2-13/32'' | 1/4'' | 2 | HW | RH | 790.120.00 | 791.022.00 | 990.075.00 | 991.061.00 | 990.400.00 | 990.051.00 | 991.062.00 | ||
|
659.646.11
|
45° | 1-9/64'' | 5/16'' | 2-23/32'' | 1/2'' | 2 | HW | RH | 790.120.00 | 791.022.00 | 990.075.00 | 991.061.00 | 990.400.00 | 990.051.00 | 991.062.00 |
