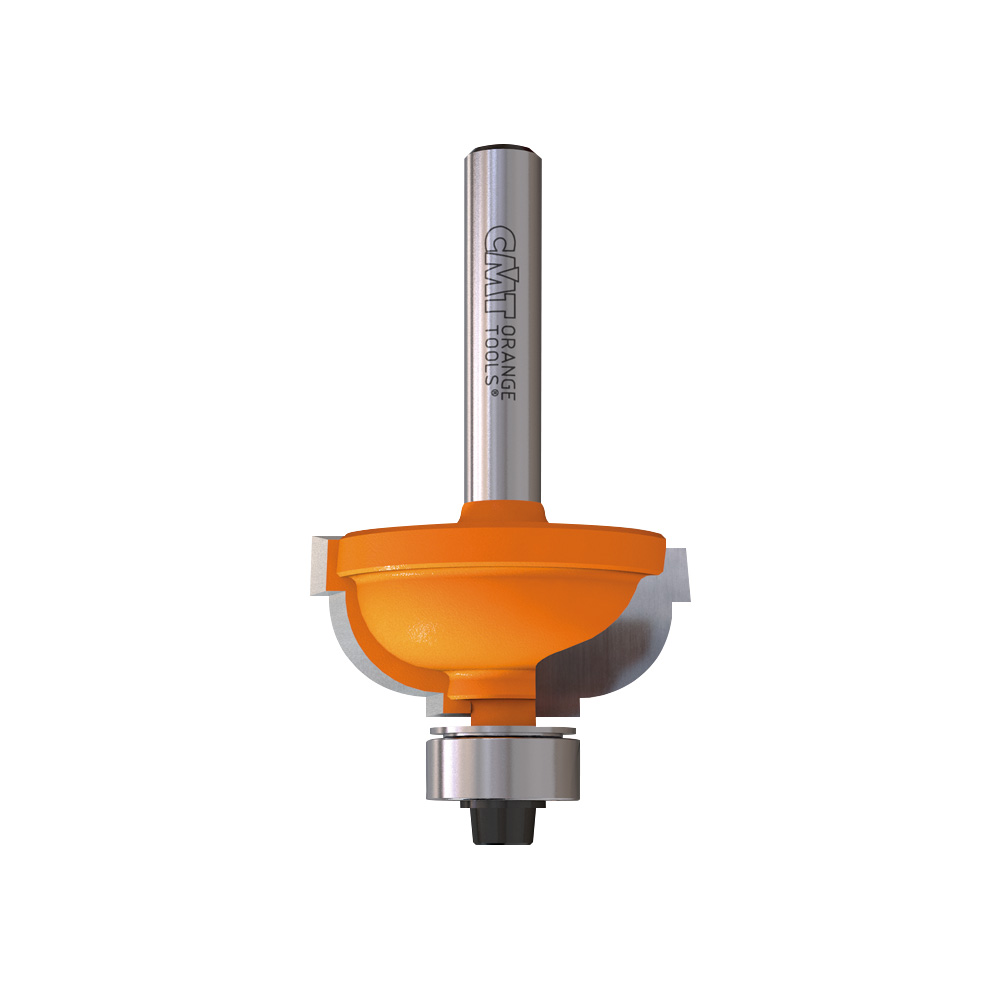

Cavetto Edge Mould Bits
7/8/963 - 7/8/964

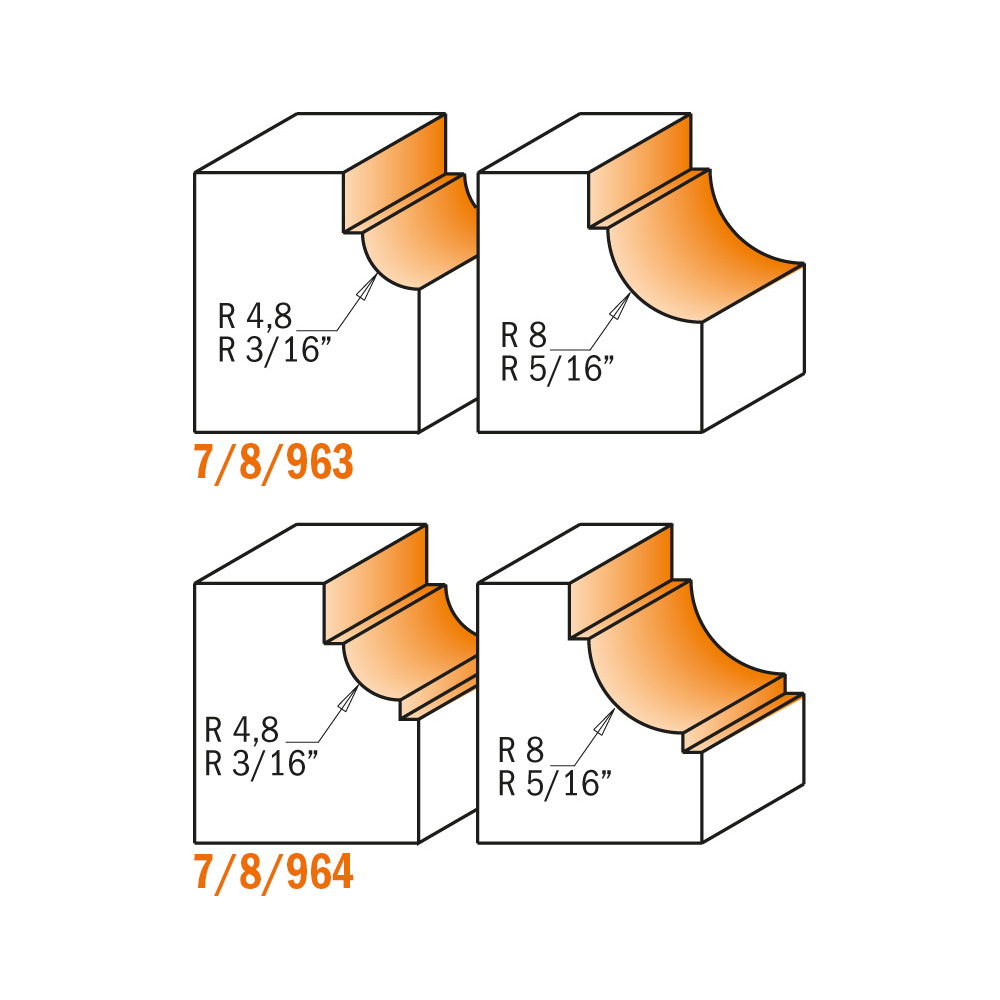

The cavetto bit cuts beautiful, traditional profiles, but you may also use just a portion of the bit to cut a more simple and cleaner cove edge.
This bit adds a special touch to furniture pieces by making traditional cove profiles with top and bottom fillet grooves in any kind of wood and wood composites.
This bit adds a special touch to furniture pieces by making traditional cove profiles with top and bottom fillet grooves in any kind of wood and wood composites.
Important:
always assemble the black bearing heat shield with the raised side up when changing the bearing.
always assemble the black bearing heat shield with the raised side up when changing the bearing.
Improper assembly will cause the screw to come loose and the bearing to fall off when routing.
Shop tips:
undersized bearing to use after resharpening.
791.062.00 Ø9,3 replace bearing 791.002.00 (Ø9,5) after resharpening
791.063.00 Ø12,5 replace bearing 791.003.00 (Ø12,7) after resharpening.
Shop tips:
undersized bearing to use after resharpening.
791.062.00 Ø9,3 replace bearing 791.002.00 (Ø9,5) after resharpening
791.063.00 Ø12,5 replace bearing 791.003.00 (Ø12,7) after resharpening.
Variations
Filter

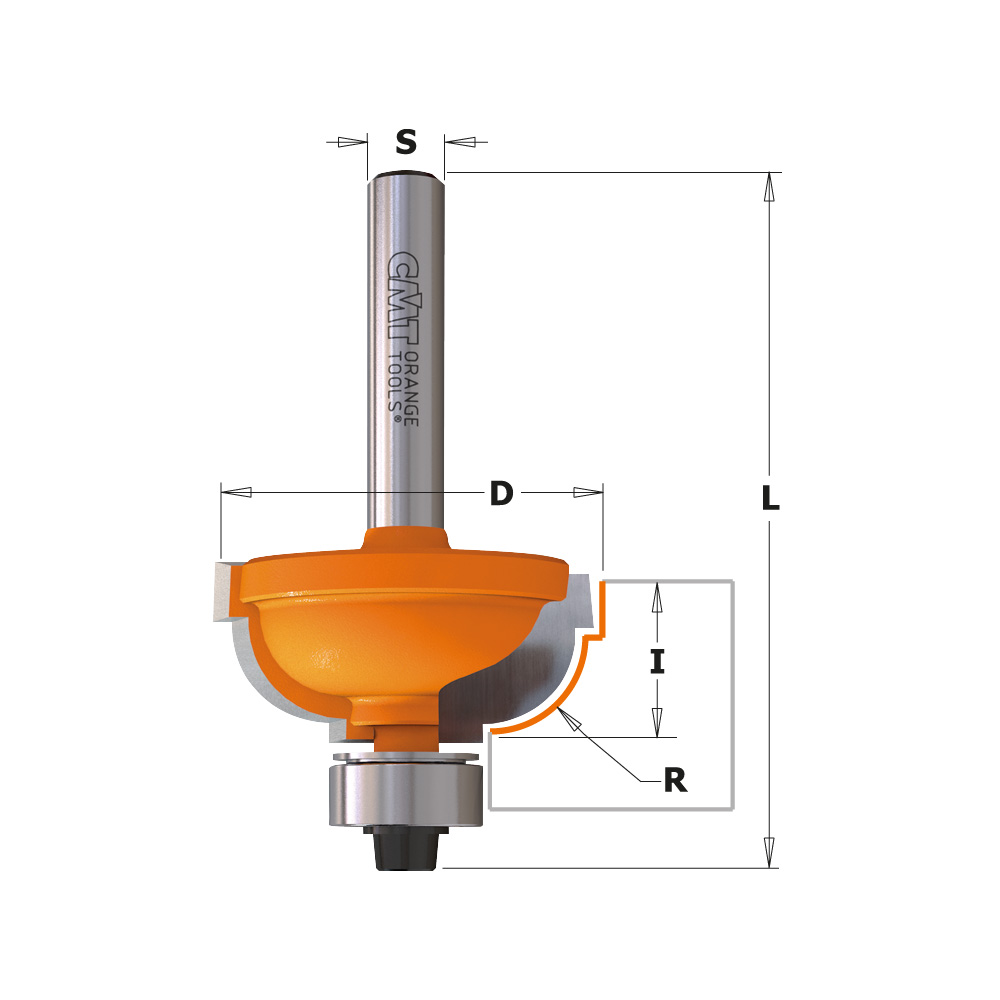

| Item Code | R | D | I | L | S |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
863.048.11
|
3/16'' | 1'' | 29/64'' | 2-1/8'' | 1/4'' | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 | |||
|
863.548.11
|
3/16'' | 1'' | 29/64'' | 2-5/16'' | 1/2'' | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 | |||
|
864.548.11
|
3/16'' | 1'' | 29/64'' | 2-5/16'' | 1/2'' | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |||
|
864.580.11
|
5/16'' | 1-1/4'' | 9/16'' | 2-13/32'' | 1/2'' | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |||
|
863.580.11
|
5/16'' | 1-1/4'' | 9/16'' | 2-31/64'' | 1/2'' | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 | |||
|
864.080.11
|
5/16'' | 1-1/4'' | 9/16'' | 2-11/64'' | 1/4'' | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |||
|
863.080.11
|
5/16'' | 1-1/4'' | 9/16'' | 2-1/4'' | 1/4'' | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
