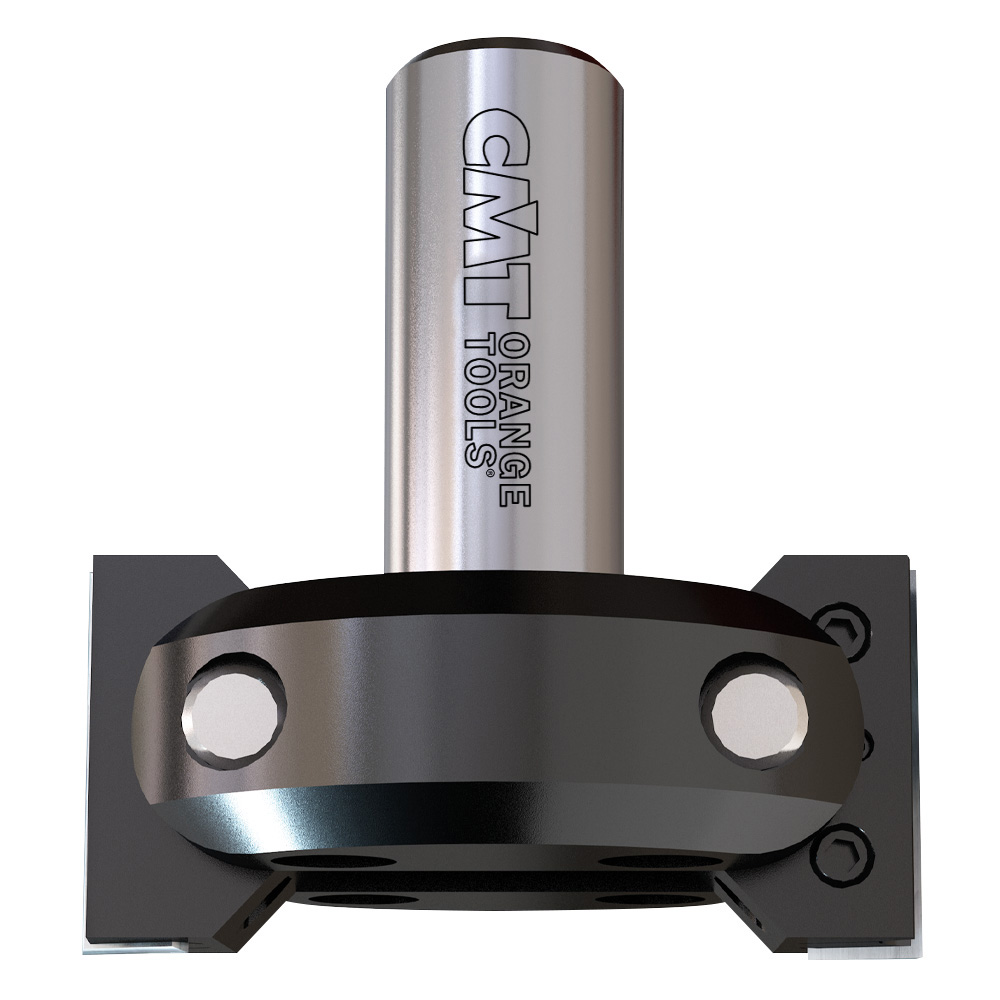

Adjustable chamfering CNC cutter
663.201.11
Technical details:
- Tool body in steel;
- 2 reversible HWM knives 39,5x12x1,5mm [Z2];
- Peripheral cutting on both sides;

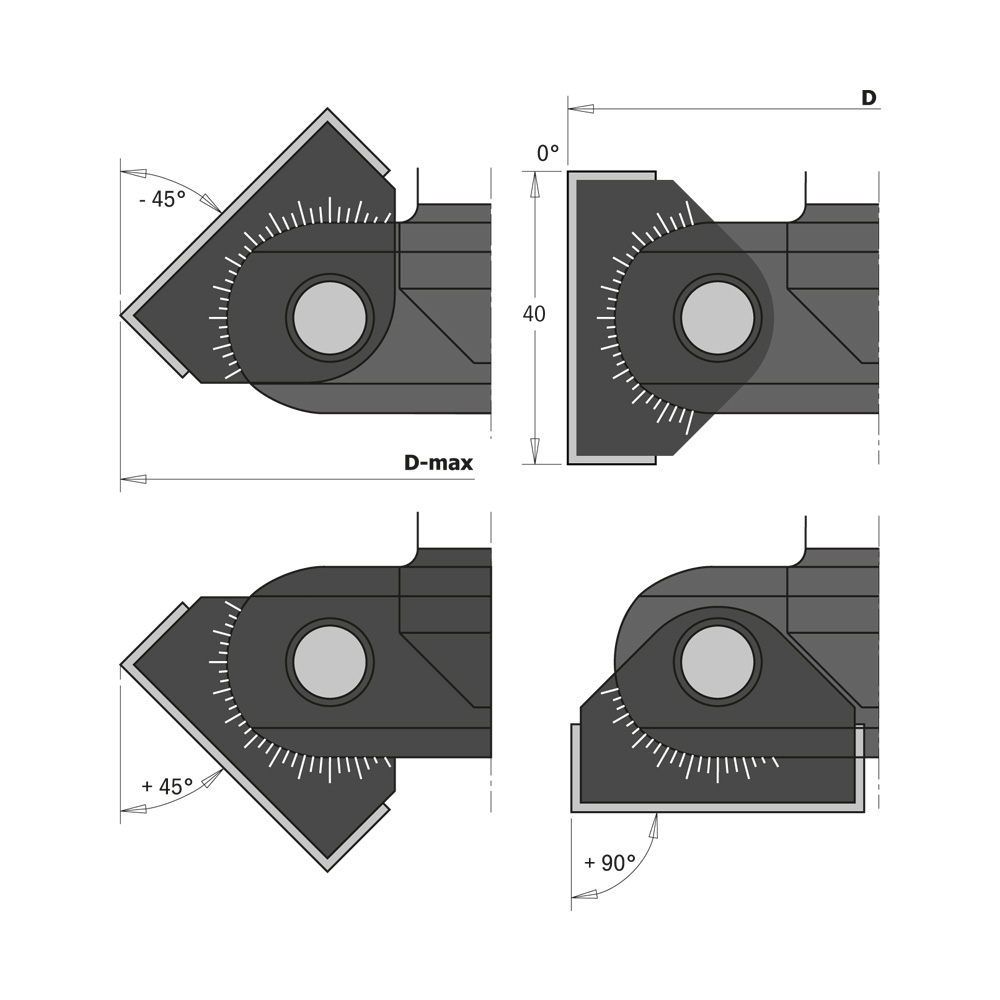

- Adjustable swivelling blade (Rotates at 7,5° intervals; Precision = 7,5°);
- Swivelling range 0-45° towards top, and 0-90° towards bottom.
Inclination:
| Min. | Max |
| -45° | +90° |
Details
For jointing, rebating and chamfering of solid wood and wooden boards. Suitable for CNC router machines and stationary router machine with manual or mechanical feed.
Download
Variations
Filter
| Item Code | D | D | I | A | MAX RPM | L | S | RH-LH |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
663.201.11
|

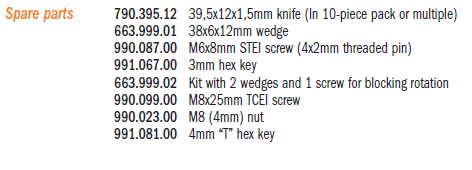

3-11/32'' | 39.5mm | 0°-45° - 0°+90° | 7500~12000 | 3-5/8'' | 20mm | RH | 991.067.00 | 790.395.12 | 663.999.02 | 663.999.01 | 990.087.00 | 990.099.00 | 990.023.00 | 991.081.00 |
