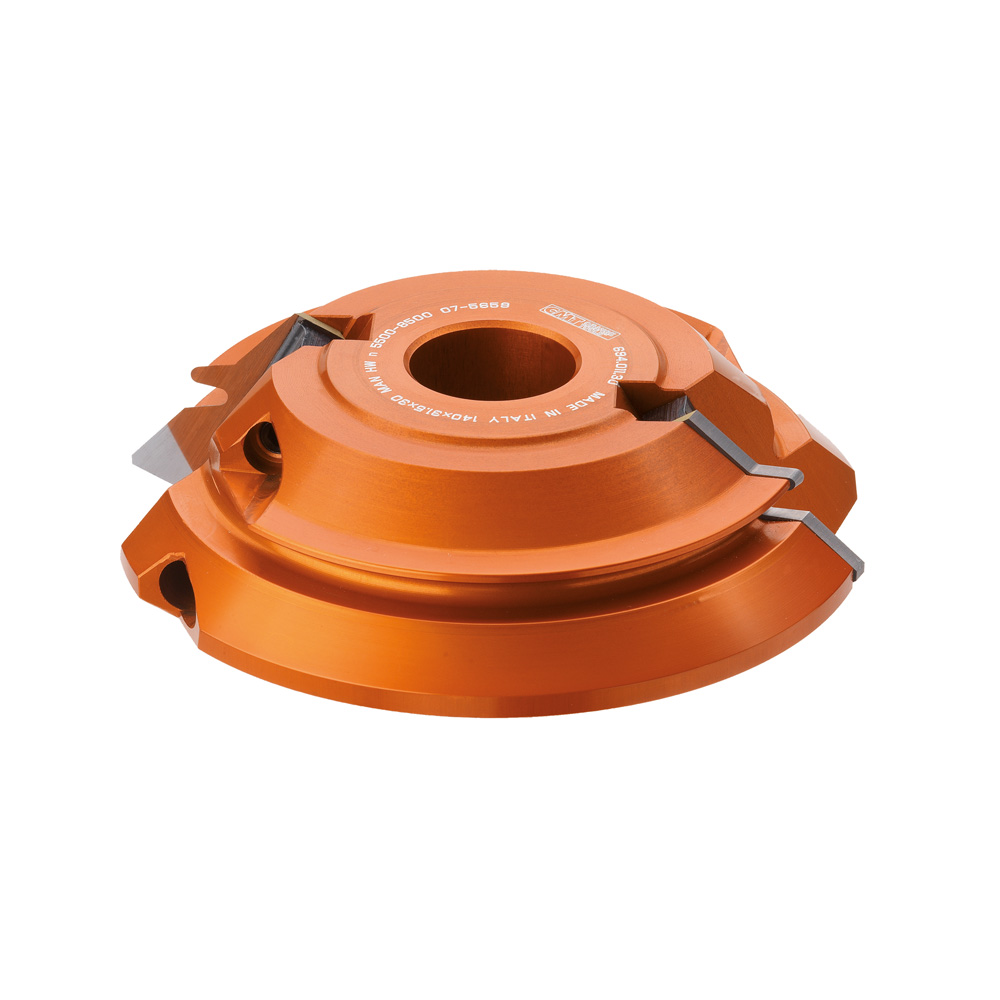

45° lock miter cutter heads
694.011

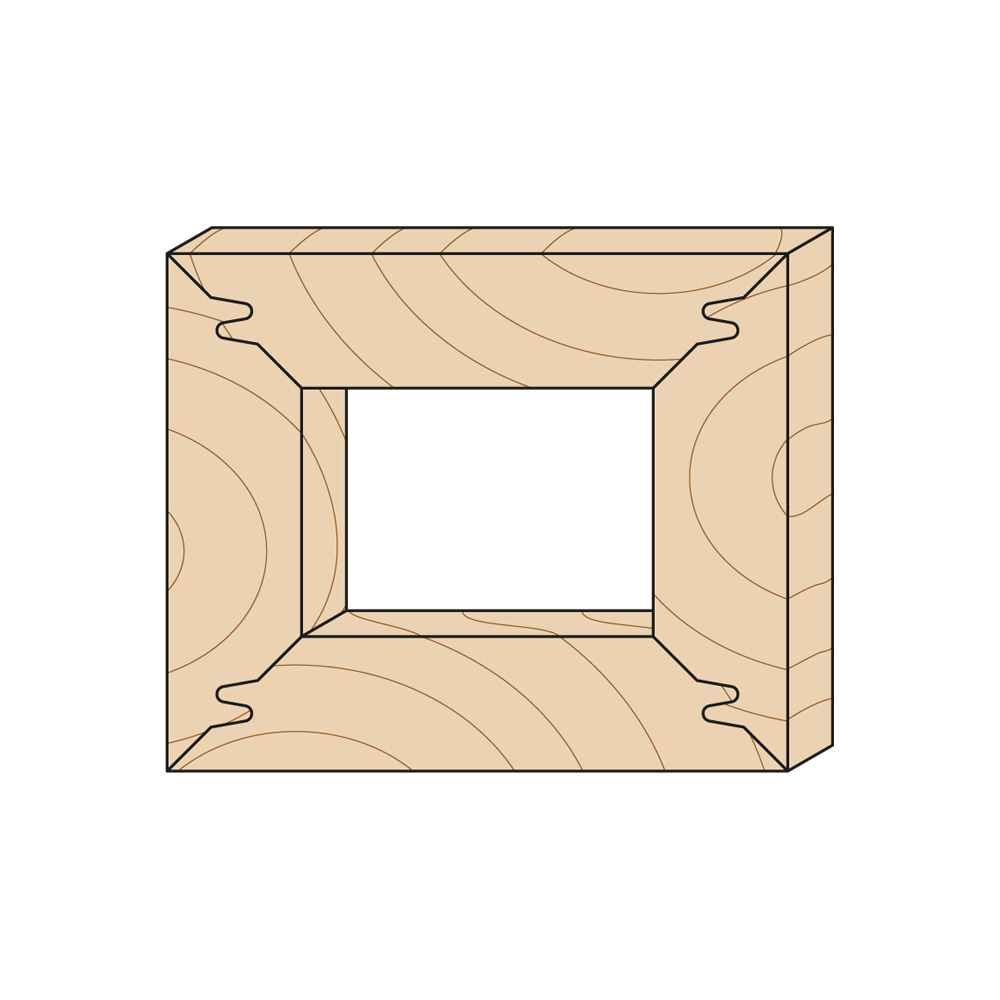

CMT’s lock miter cutter heads are ideal for milling miter joints in stock with maximum 28mm in thickness. Create boxes, stretcher bars, frames and any assortment of right angle or parallel joint projects.

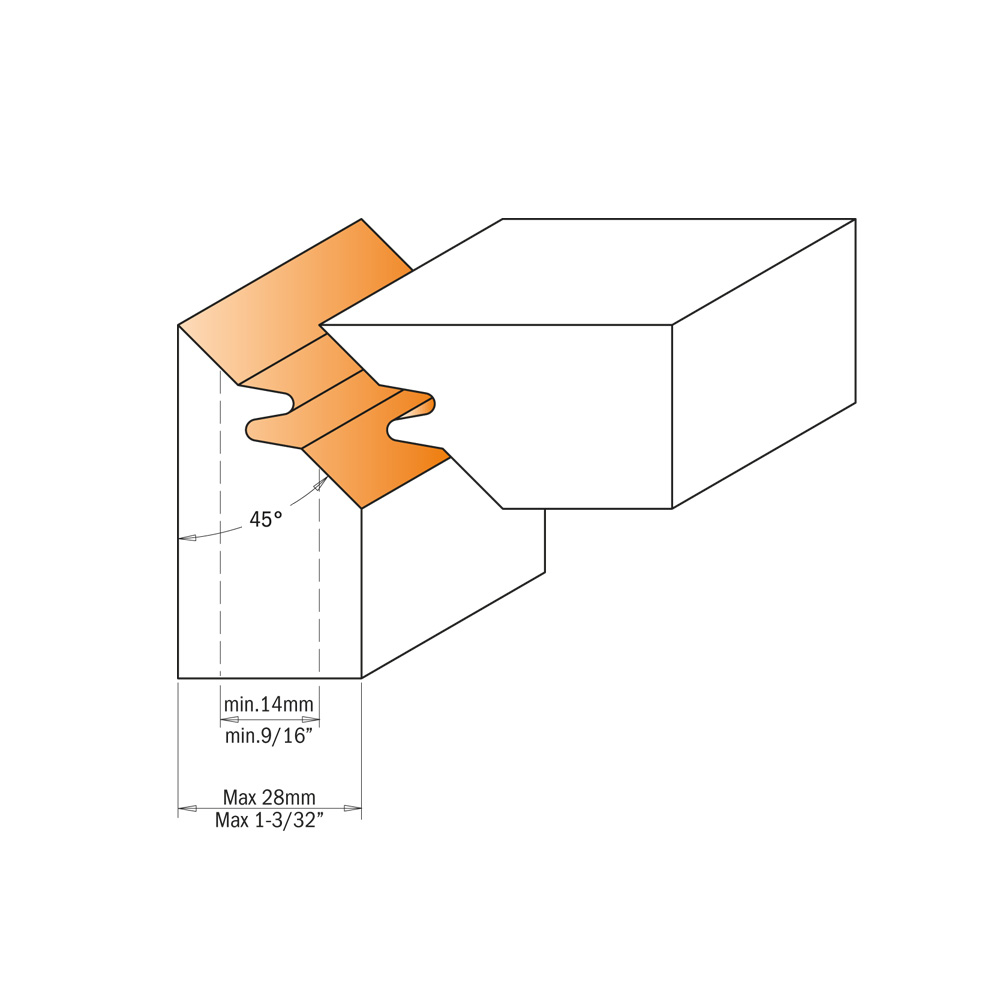

Two easy steps to produce perfect fitting 45° miter joints: first, position your workpiece horizontally, then vertically. Also, create parallel glue joints in two steps: place your workpiece horizontally, internal side facing down, and then turn it facing up.
For use on spindle moulder and shaper machines. Perfect on all materials, but ideal on solid wood and panels.
Technical details
- Hard aluminium alloy body with high resistance to tensile and yield stress.

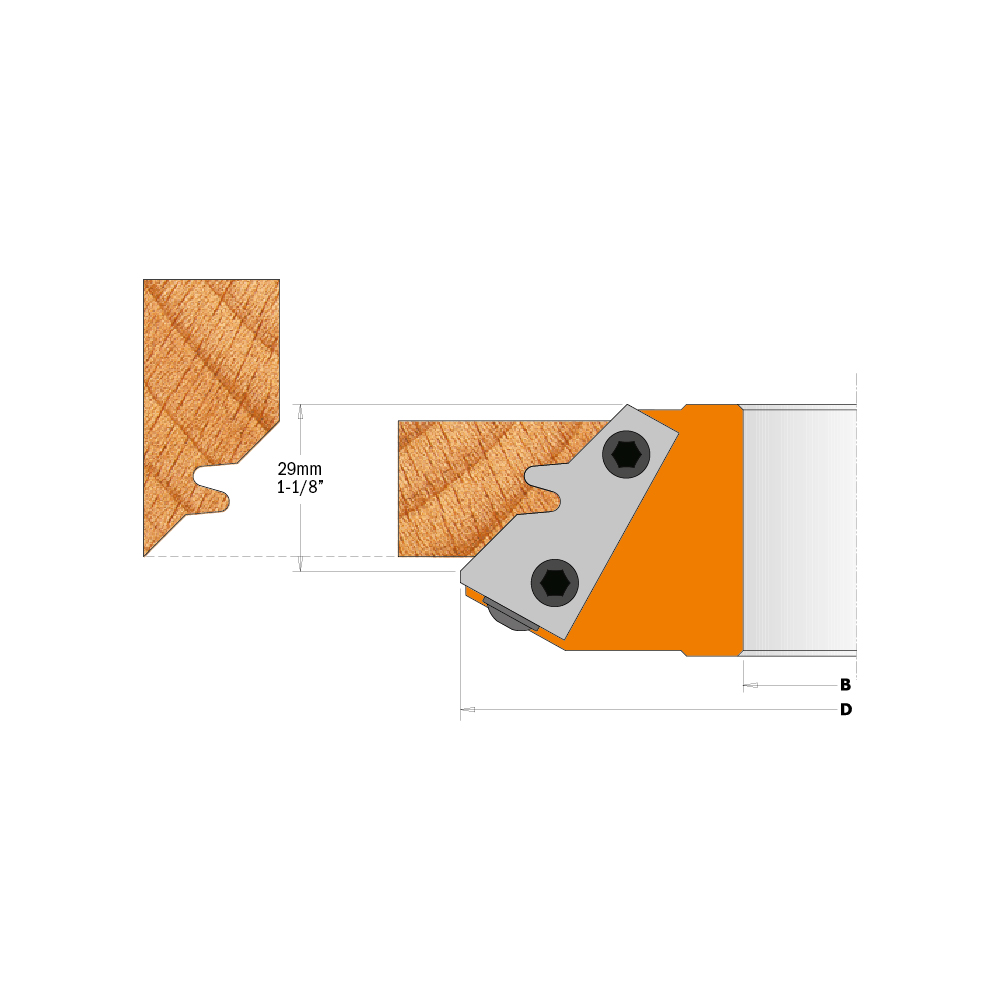

- 2 HWM knives 43x23x2mm [Z2].
- Tools for manual feed (MAN).
-
Pins for the automatic positioning of the knives.

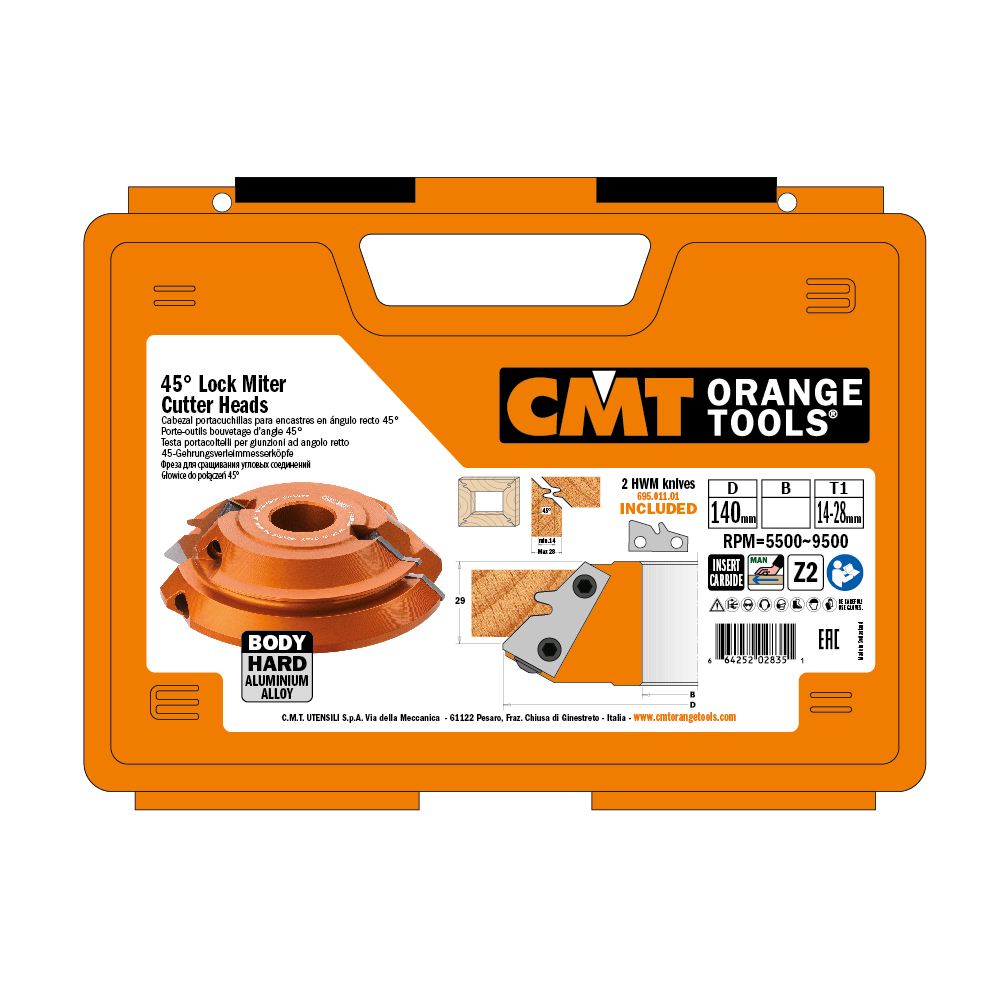

Supplied in a solid plastic box.
Details
Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.
for the proper fastening of screws.
Variations
Filter
| Item Code | D | B | Z | MAX RPM | MAT |
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
694.011.31
|
5-1/2'' | 1-1/4'' | 2 | 5500~9500 | HW | 695.011.01 | 695.999.42 | 990.064.00 | 991.064.00 |
