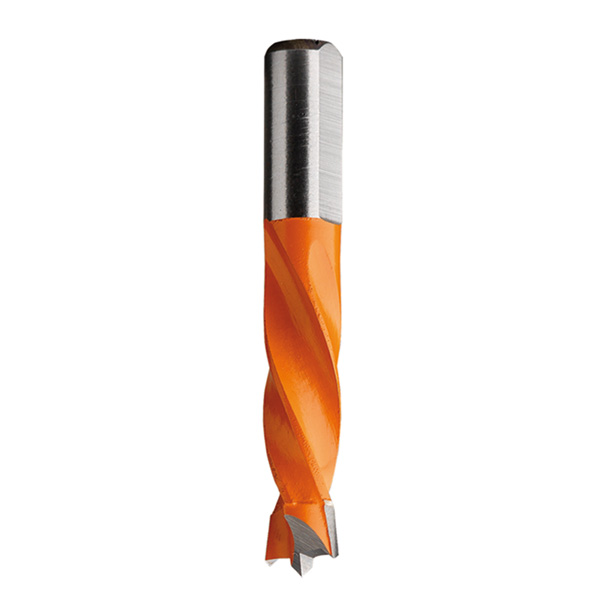

4 flute dowel drills
306 HW
TECHNICAL DETAILS:
• Super-strength steel.
• Cutter portion coated with black or orange P.T.F.E.

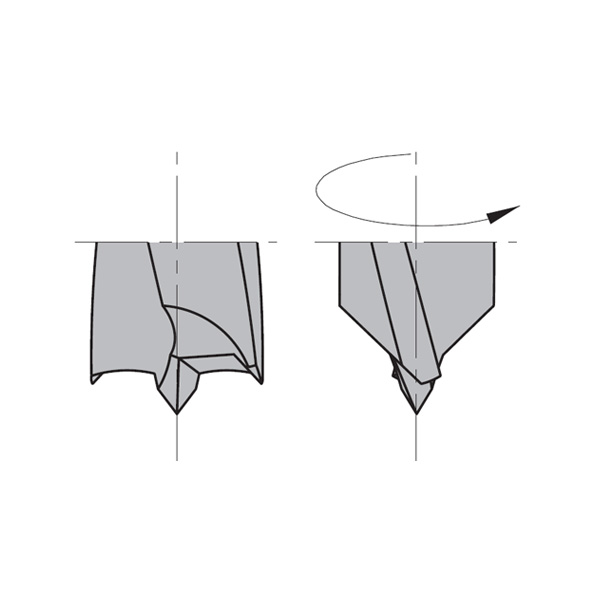

• HW head with precision balanced centre point.
• 2 HW precision ground cutting edges (Z2).
• 2 negatively ground spurs (V2).
• 4 spiral flutes.
• Parallel shank with driving flat and length adjusting screw.
Details
Used on boring machines equipped with adaptors or chucks. Used to drill blind holes in solid wood, wood composites, plastic and laminated materials.
Variations
Filter

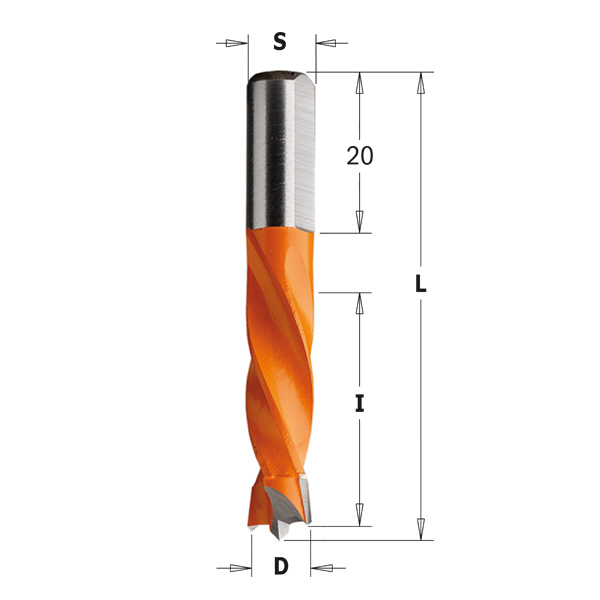

| Item Code | D | I | L | S | RH-LH |
|
|
|
|---|---|---|---|---|---|---|---|---|
|
306.030.21
|
3mm | 18mm | 55.5mm | 8x20mm | RH | 990.003.00 | 990.088.00 | |
|
306.050.11
|
5mm | 30mm | 55.5mm | 8x20mm | RH | 990.003.00 | 990.088.00 | |
|
306.050.12
|
5mm | 30mm | 55.5mm | 8x20mm | LH | 990.003.00 | 990.088.00 | |
|
306.055.11
|
7/32'' | 30mm | 55.5mm | 8x20mm | RH | 990.003.00 | 990.088.00 | |
|
306.055.12
|
7/32'' | 30mm | 55.5mm | 8x20mm | LH | 990.003.00 | 990.088.00 | |
|
306.060.11
|
6mm | 30mm | 55.5mm | 8x20mm | RH | 990.003.00 | 990.088.00 | |
|
306.060.12
|
6mm | 30mm | 55.5mm | 8x20mm | LH | 990.003.00 | 990.088.00 | |
|
306.064.11
|
1/4'' | 30mm | 55.5mm | 8x20mm | RH | 990.003.00 | 990.088.00 | |
|
306.064.12
|
1/4'' | 30mm | 55.5mm | 8x20mm | LH | 990.003.00 | 990.088.00 | |
|
306.070.11
|
7mm | 30mm | 55.5mm | 8x20mm | RH | 990.003.00 | 990.088.00 | |
|
306.070.12
|
7mm | 30mm | 55.5mm | 8x20mm | LH | 990.003.00 | 990.088.00 | |
|
306.080.11
|
5/16'' | 30mm | 55.5mm | 8x20mm | RH | 990.003.00 | 990.088.00 | |
|
306.080.12
|
5/16'' | 30mm | 55.5mm | 8x20mm | LH | 990.003.00 | 990.088.00 | |
|
306.090.11
|
9mm | 30mm | 55.5mm | 8x20mm | RH | 990.003.00 | 990.088.00 | |
|
306.090.12
|
9mm | 30mm | 55.5mm | 8x20mm | LH | 990.003.00 | 990.088.00 | |
|
306.100.11
|
10mm | 30mm | 55.5mm | 8x20mm | RH | 990.003.00 | 990.088.00 | |
|
306.100.12
|
10mm | 30mm | 55.5mm | 8x20mm | LH | 990.003.00 | 990.088.00 | |
|
306.120.11
|
12mm | 30mm | 55.5mm | 8x20mm | RH | 990.003.00 | 990.088.00 | |
|
306.120.12
|
12mm | 30mm | 55.5mm | 8x20mm | LH | 990.003.00 | 990.088.00 |
