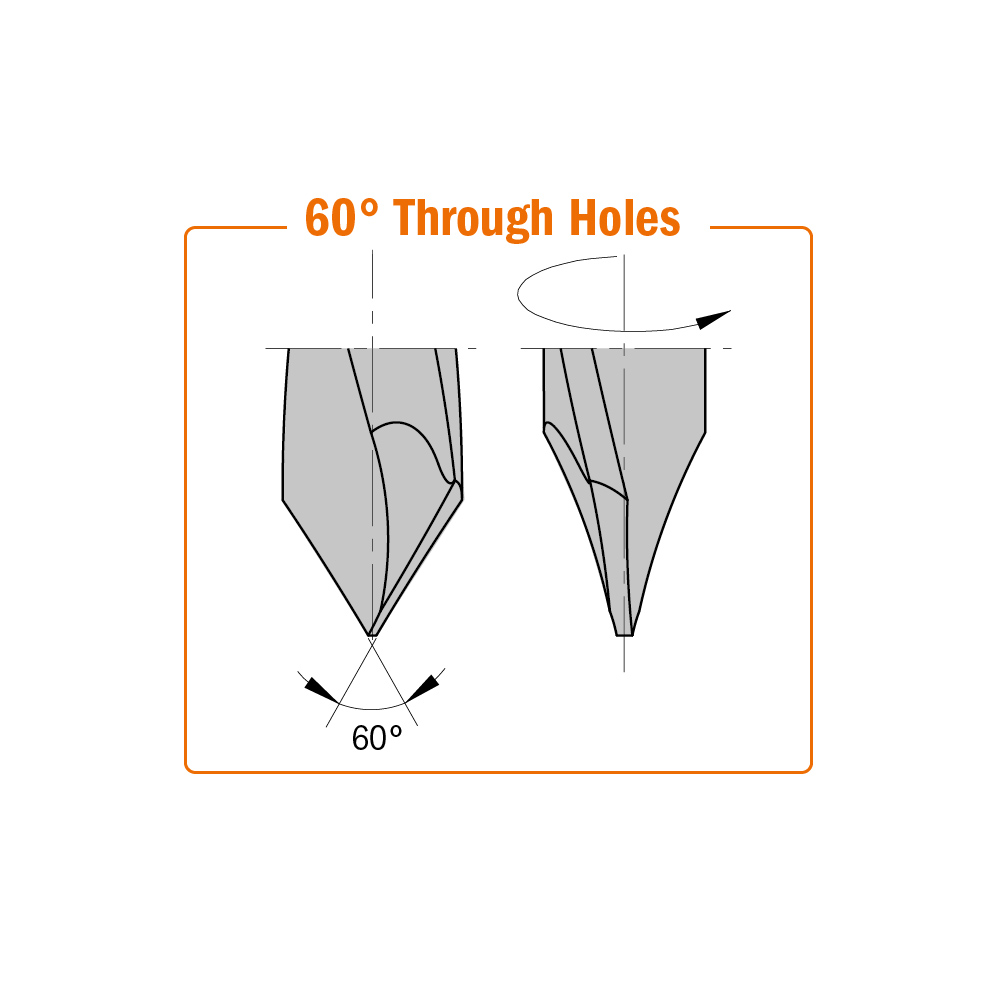

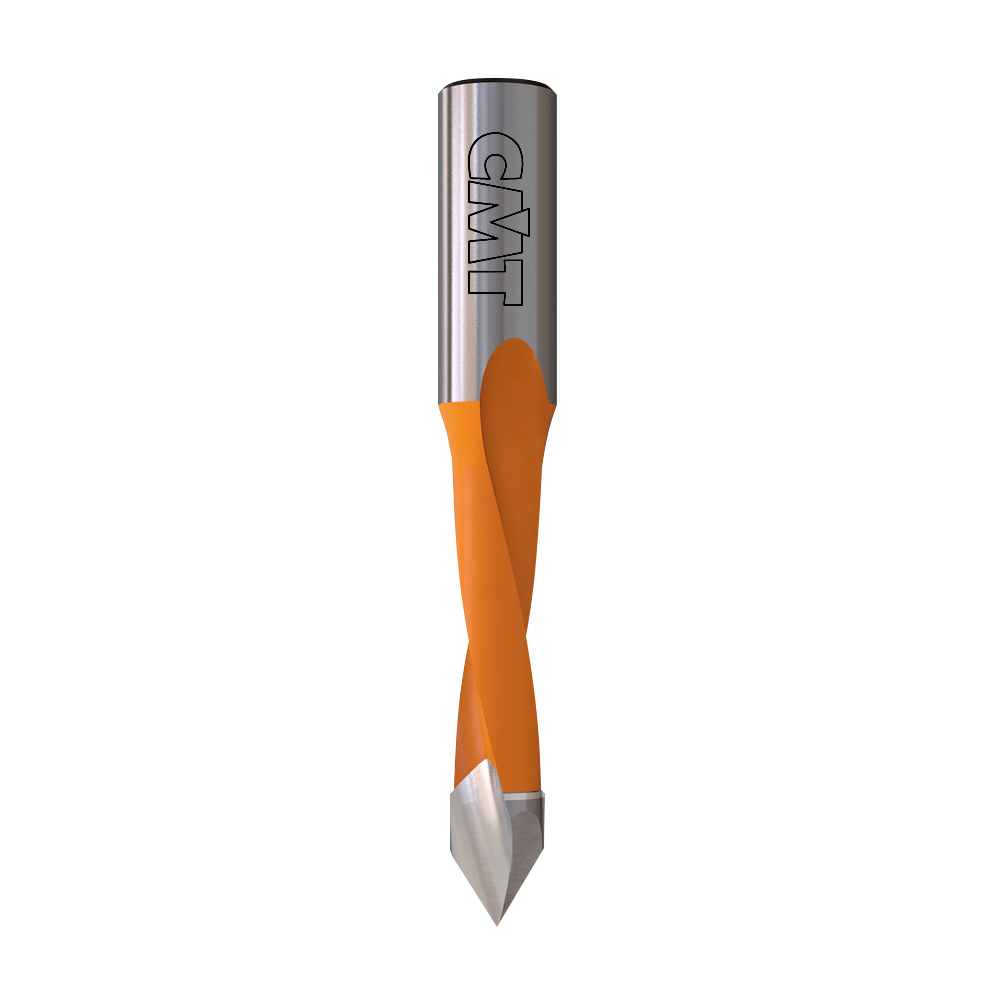

2 flute dowel drills for through holes
314HW
TECHNICAL DETAILS:
-Super-strength steel.
-Spiral portion coated with orange or black P.T.F.E.
-HW head with precision balanced centre point.
-2 precision ground cutting edges (Z2).
-2 spiral flutes.
-Parallel shank with driving flat and length adjusting screw.
Details
Used on boring machines and dowel drilling devices. Use for drilling through holes in solid wood, wood composites, plastic and laminated materials.
For panels with maximum 25-30mm in thickness.
Variations
Filter

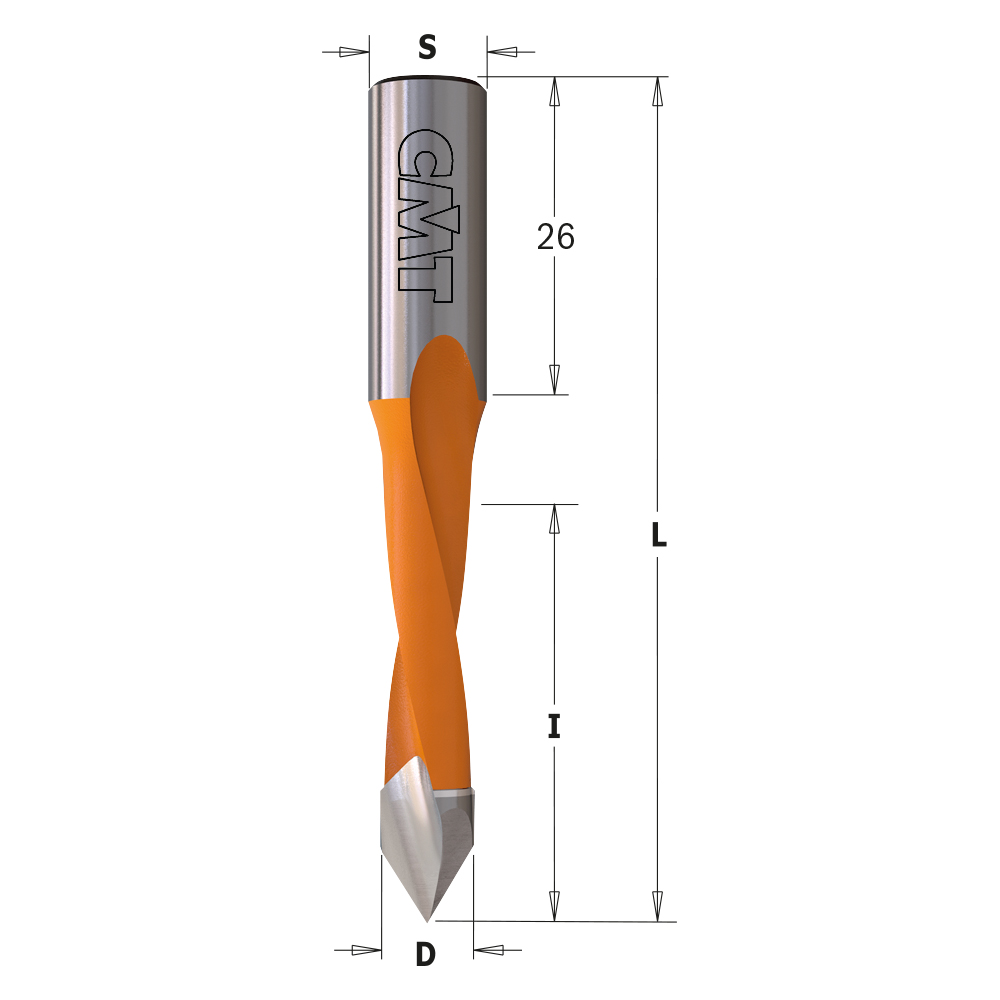

| Item Code | D | I | L | S | RH-LH |
|
|
|
|---|---|---|---|---|---|---|---|---|
|
314.040.11
|
4mm | 30mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.040.12
|
4mm | 30mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 | |
|
314.047.11
|
3/16'' | 35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.047.12
|
3/16'' | 35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 | |
|
314.050.11
|
5mm | 35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.050.12
|
5mm | 35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 | |
|
314.055.11
|
7/32'' | 35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.055.12
|
7/32'' | 35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 | |
|
314.060.11
|
6mm | 35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.060.12
|
6mm | 35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 | |
|
314.064.11
|
1/4'' | 35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.064.12
|
1/4'' | 35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 | |
|
314.070.11
|
7mm | 35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.070.12
|
7mm | 35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 | |
|
314.080.11
|
5/16'' | 35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.080.12
|
5/16'' | 35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 | |
|
314.090.11
|
9mm | 35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.090.12
|
9mm | 35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 | |
|
314.095.11
|
3/8'' | 35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.095.12
|
3/8'' | 35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 | |
|
314.100.11
|
10mm | 35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.100.12
|
10mm | 35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 | |
|
314.120.11
|
12mm | 35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.120.12
|
12mm | 35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 | |
|
314.127.11
|
1/2'' | 35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 | |
|
314.127.12
|
1/2'' | 35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
